Acerca del producto

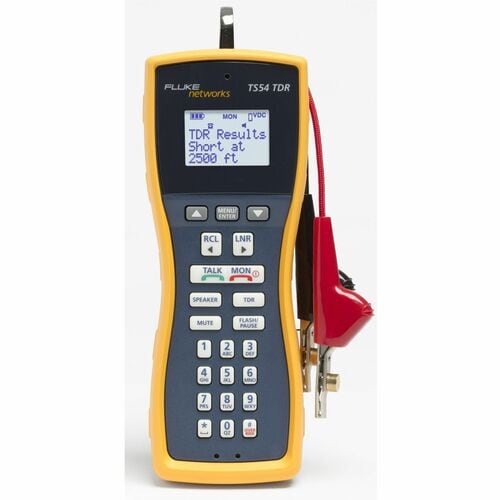

The innovative TS®54 TDR (Time Domain Reflectometer) is perfect for voice, data and video technicians and communication service provider technicians who need a best-in-class test set. There's nothing else like the TS54 TDR on the market today. No longer will you need to carry a separate TDR, toner, pair identifier-everything you need is in one newly redesigned and compact test set-that's a 62% weight reduction and a 20% cost reduction over existing products.
The TS54 delivers 20% more extreme weather protection with the latest advancements to our patented RainSafe™, DropSafe™ and DataSafe™ technology. This means the TS54 is weatherproof and rugged and able to butt in on live DSL lines to test POTS quality without crashing data service.
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators |
|
| Display & Graphics | |
| Display Screen Type | LCD |
| Power Description | |
| Input Voltage | 9 V DC |
| Battery Information | |
| Battery Chemistry | Alkaline |
| Battery Size Supported | 9V |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | Singapore |
| Physical Characteristics | |
| Weight (Approximate) | 526.2 g |
| Height | 8.30" (210.82 mm) |
| Width | 3.20" (81.28 mm) |
| Depth | 2.60" (66.04 mm) |
| Technical Information | |
| Device Function | Cable Length Testing |
| Current Measurement | |
| Video Signal Testing | |
| Voice Signal Testing | |
| Voltage Monitor | |
| General Information | |
| Product Type | Testing Device |
| Manufacturer Part Number | TS54A09TDR |
| Manufacturer Website Address | http://www.flukenetworks.com |
| Manufacturer | Fluke Networks |
| Product Model | TS54-A-09-TDR |
| Product Name | Test Set + TDR, ABN with Piercing Pin |
| Product Series | TS54 |
| Brand Name | Fluke Networks |
