Acerca del producto

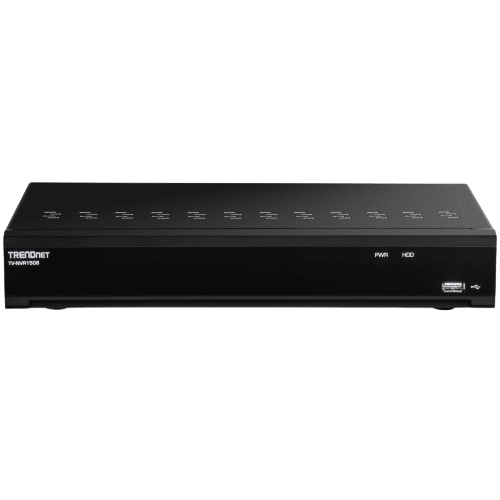

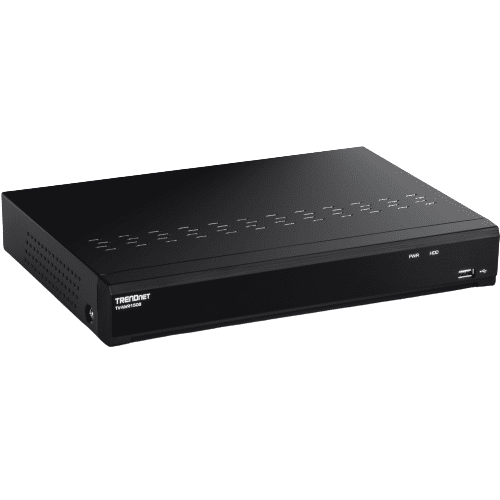

TRENDnet’s standalone 8-Channel H.265 4K (8MP) PoE NVR, model TV-NVR1508, offers a comprehensive rack mountable camera management solution and is available at Aartech Canada. The 8-port NVR networks and powers up to eight PoE cameras*. Install up to 12TB of storage (hard drives not included) to record over one month of continuous video from eight 4K HD PoE cameras**. The TV-NVR1508 features advanced video playback and works with free iOS®/Android™ apps.
TRENDnet 8 Channel 4K UHD PoE+ NVR Features:
- Easy Cloud P2P QR code installation
- Standalone 8-channel UHD PoE network video recorder
- 8MP (4K) concurrent camera streams up to 240fps
- Supports eight 4K camera channels
- Supports H.265 video encoding for high-quality & low-bandwidth streams
- Plug and play up to 8 TRENDnet PoE cameras*
- Concurrent 4K HD video recording for all channels
- One 3.5” SATA internal drive bay supports up to a 12TB of storage (HDD sold separately)
- External USB port supports up to 128GB
- Over one month of continuous 4K HD video recording**
- Advanced video playback
- Rackmount hardware included
- PoE power budget: 56W
- ONVIF certified
- NDAA / TAA compliant
TRENDnet 8 Channel 4K UHD PoE+ NVR Specifications:
Video Input:
- H.265 / H.264
- Up to 8 cameras
- Max. frame rate: 240fps
Video Output:
- HDMI up to 4K 3840 x 2160
- VGA up to 1920 x 1080
Audio:
- Input: 8 Channel, G.711 u-law 8K & AAC
- Output: RCA connector (0.7Vp-p, 300 – 3000Hz)
Recording:
- Up to 8MP resolution
- H.265 / H.264
- Max. network throughput: 64Mbps
- 8-Channel simultaneous recording up to 1080p 30fps
- SATA interface for HDD or SSD up to 12TB storage each
Playback:
- Playback resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Hardware Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
Device Interface:
- 1 x Gigabit network port
- 8 x 100Mbps PoE ports
- 2 x USB 2.0 ports
- 1 x HDMI port
- 1 x VGA port
- 1 x SATA connector (up to 12TB)
- Analog audio outport
- Power port
- Power switch
PoE Ports:
- Max. 7W per port
- Power budget: 56W
Network Protocol:
- IPv4, UDP, TCP, ONVIF v2.2
- DHCP, NTP, DDNS, SMTP, FTP, SNMP v2
- HTTP, UPnP, RTSP, RTP, RTCP
Operating Temperature:
- 0° - 40° C (32° - 104° F)
Operating Humidity:
- Max. 80% non-condensing
Certifications:
- CE
- FCC
Dimensions:
- 300 x 227 x 53mm (15 x 12 x 1.8 in.)
Weight:
- 1kg (2.3 lb.)
Power:
- Input: 100 – 240V AC 50/60 Hz
- Output: 48V 1.5A
- Max. consumption: 6W (without camera)
Management Interface:
- Live view: Simultaneous 1 / 4 / 9 / 16 split
- Manual, scheduled (continuous, event) recording
- Video export
- USB external storage: firmware upgrade, import/export configuration files and logs, export recorded video files, search and playback videos directly from external storage
- Local live view settings: define screen layout and channel viewing sequence
- Alert messages: motion, alarm, and video lost
- Supported dynamic DNS services: dyndns.org and ipddns.cc
- Management Setting: maximum 15 user accounts
Sentinel App:
- Free iOS® and Android™ apps
- View live camera video
- Push notifications
- Take snapshots and videos
- Playback
Warranty:
- 2 years
PACKAGE CONTENTS:
- TV-NVR1508
- Optical mouse
- Quick Installation Guide
- Power adapter (48V, 1.5A)
Especificaciones técnicas
TRENDnet’s standalone 8-Channel H.265 4K (8MP) PoE NVR, model TV-NVR1508, offers a comprehensive rack mountable camera management solution and is available at Aartech Canada. The 8-port NVR networks and powers up to eight PoE cameras*. Install up to 12TB of storage (hard drives not included) to record over one month of continuous video from eight 4K HD PoE cameras**. The TV-NVR1508 features advanced video playback and works with free iOS®/Android™ apps.
TRENDnet 8 Channel 4K UHD PoE+ NVR Features:
- Easy Cloud P2P QR code installation
- Standalone 8-channel UHD PoE network video recorder
- 8MP (4K) concurrent camera streams up to 240fps
- Supports eight 4K camera channels
- Supports H.265 video encoding for high-quality & low-bandwidth streams
- Plug and play up to 8 TRENDnet PoE cameras*
- Concurrent 4K HD video recording for all channels
- One 3.5” SATA internal drive bay supports up to a 12TB of storage (HDD sold separately)
- External USB port supports up to 128GB
- Over one month of continuous 4K HD video recording**
- Advanced video playback
- Rackmount hardware included
- PoE power budget: 56W
- ONVIF certified
- NDAA / TAA compliant
TRENDnet 8 Channel 4K UHD PoE+ NVR Specifications:
Video Input:
- H.265 / H.264
- Up to 8 cameras
- Max. frame rate: 240fps
Video Output:
- HDMI up to 4K 3840 x 2160
- VGA up to 1920 x 1080
Audio:
- Input: 8 Channel, G.711 u-law 8K & AAC
- Output: RCA connector (0.7Vp-p, 300 – 3000Hz)
Recording:
- Up to 8MP resolution
- H.265 / H.264
- Max. network throughput: 64Mbps
- 8-Channel simultaneous recording up to 1080p 30fps
- SATA interface for HDD or SSD up to 12TB storage each
Playback:
- Playback resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Hardware Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
Device Interface:
- 1 x Gigabit network port
- 8 x 100Mbps PoE ports
- 2 x USB 2.0 ports
- 1 x HDMI port
- 1 x VGA port
- 1 x SATA connector (up to 12TB)
- Analog audio outport
- Power port
- Power switch
PoE Ports:
- Max. 7W per port
- Power budget: 56W
Network Protocol:
- IPv4, UDP, TCP, ONVIF v2.2
- DHCP, NTP, DDNS, SMTP, FTP, SNMP v2
- HTTP, UPnP, RTSP, RTP, RTCP
Operating Temperature:
- 0° - 40° C (32° - 104° F)
Operating Humidity:
- Max. 80% non-condensing
Certifications:
- CE
- FCC
Dimensions:
- 300 x 227 x 53mm (15 x 12 x 1.8 in.)
Weight:
- 1kg (2.3 lb.)
Power:
- Input: 100 – 240V AC 50/60 Hz
- Output: 48V 1.5A
- Max. consumption: 6W (without camera)
Management Interface:
- Live view: Simultaneous 1 / 4 / 9 / 16 split
- Manual, scheduled (continuous, event) recording
- Video export
- USB external storage: firmware upgrade, import/export configuration files and logs, export recorded video files, search and playback videos directly from external storage
- Local live view settings: define screen layout and channel viewing sequence
- Alert messages: motion, alarm, and video lost
- Supported dynamic DNS services: dyndns.org and ipddns.cc
- Management Setting: maximum 15 user accounts
Sentinel App:
- Free iOS® and Android™ apps
- View live camera video
- Push notifications
- Take snapshots and videos
- Playback
Warranty:
- 2 years
PACKAGE CONTENTS:
- TV-NVR1508
- Optical mouse
- Quick Installation Guide
- Power adapter (48V, 1.5A)
