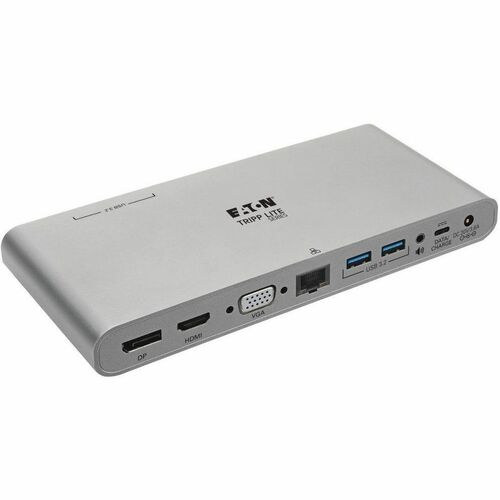

USB-C docking station with PD Charging adds HDMI, DP, VGA, USB 3.2, Ethernet and audio ports to your Windows laptop or PC.

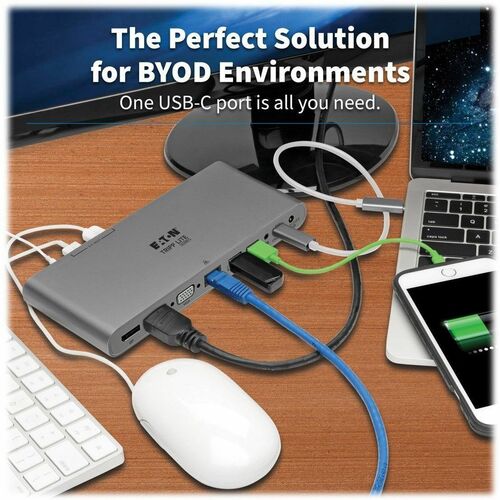

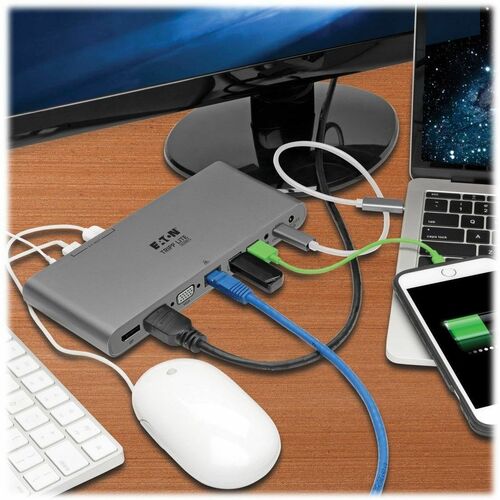

Features |USB-C Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into a Workstation
This USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, smartphone or PC's USB-C or Thunderbolt 3 port. It's ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging- compliant mobile device, connecting to a Gigabit Ethernet network and a lot more, all at the same time.
Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the detachable USB-C cable to a source device that supports USB DisplayPort Alt Mode,you can output 4K video and digital audio to a compatible monitor, television or projector without installing
special software drivers.
Transmits Crystal-Clear 4K Video and Digital Audio
The HDMI and DisplayPort (DP) outputs support Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. The VGA port supports HD resolutions up to 1920 x 1200, including 1080p, at 60 Hz. A Mini DisplayPort (mDP) or DVI display may also be connected using a DP-to-mDP or HDMI-to-DVI adapter (sold separately).

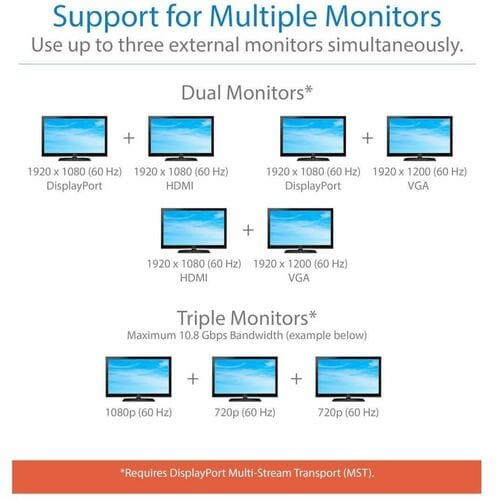

DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays
By connecting the detachable USB-C cable to a source that supports DisplayPort MST Mode, you may connect up to three displays simultaneously. This allows you to display the same image on all monitors, extend your host desktop across all with different windows open on each, or combine all into one large display as a video wall. See the included owner's manual for various combinations and video resolutions.

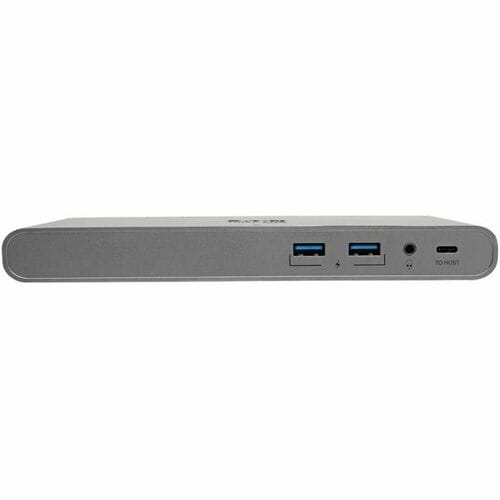

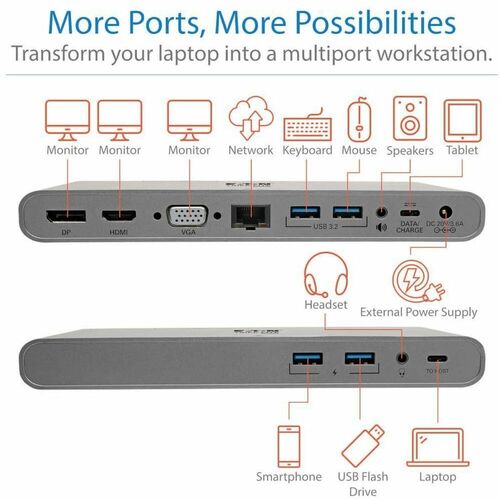

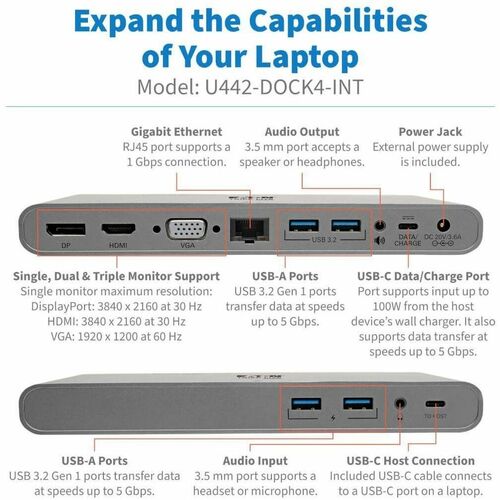

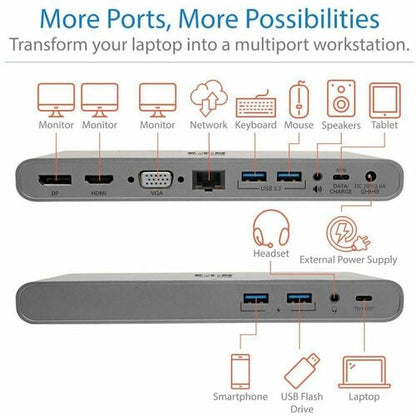

USB Ports Connect Keyboards, Thumb Drives and Other Peripherals
One USB-C and four USB-A hub ports accept USB peripherals, such as flash drives, mice, keyboards and printers. They support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps (10 times faster than USB 2.0) and are backward compatible with USB 2.0 and USB 1.1 devices. One port also supports BC 1.2 charging with 5V 1.5A (7.5W) of power dedicated to fast-charging your mobile device.
PD Charging Port Charges the Connected Notebook, Tablet or Other Device
The USB-C port supports Power Delivery (PD) charging of connected PD Charging-compliant devices, such as laptops, Kindles, iPads and Android smartphones. Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 20V 5A (100W). This port, as mentioned above, can also be used for transferring data up to 5 Gbps.
Especificaciones técnicas
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Miscellaneous | |

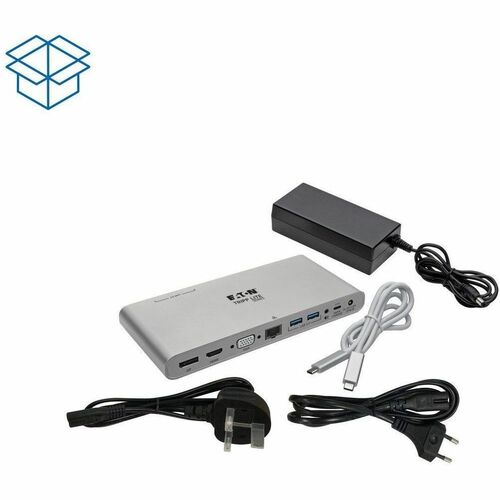

| Package Contents |
|
| Compatibility | Apple iPad |
| Country of Origin | Vietnam |
| Brand Compatibility | Apple |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |

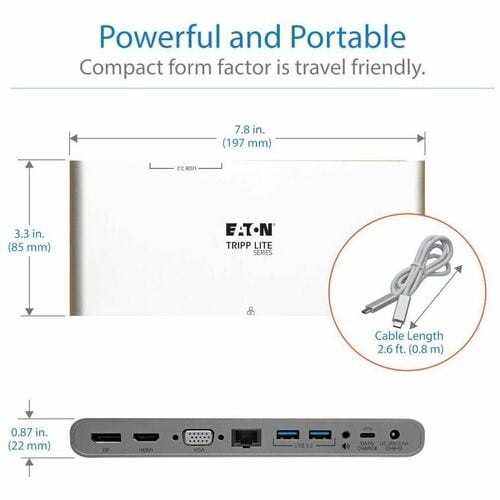

| Weight (Approximate) | 15.04 oz (426.38 g) |
| Height | 0.87" (22.10 mm) |
| Width | 7.80" (198.12 mm) |
| Depth | 3.30" (83.82 mm) |
| Product Color | Silver |
| Color Family | Silver |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | U442DOCK4INT |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | U442-DOCK4-INT |
| Product Name | U442-DOCK4-INT Docking Station |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Device Supported | TV/Monitor/Projector/Notebook/Tablet/Desktop PC |
| Connectivity Technology | Wired |
| Number of Displays Supported | 3 |
| Supported Resolutions | 1280 x 720 |
| 3840 x 2160 | |
| 1920 x 1080 | |
| Screen Mode Supported | 4K |

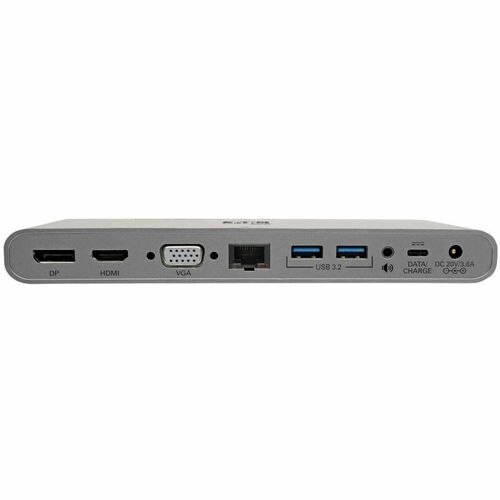

| Interfaces/Ports | |
| Host Interface | USB Type C |
| HDMI | Yes |
| HDMI Version | 2.0 |
| Number of HDMI Ports | 1 |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Number of USB 3.0 Ports | 2 |
| Thunderbolt | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| DisplayPort Version | 1.2 |
| Number of USB Type-A Ports | 4 |
| USB Type-A | Yes |
