Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.

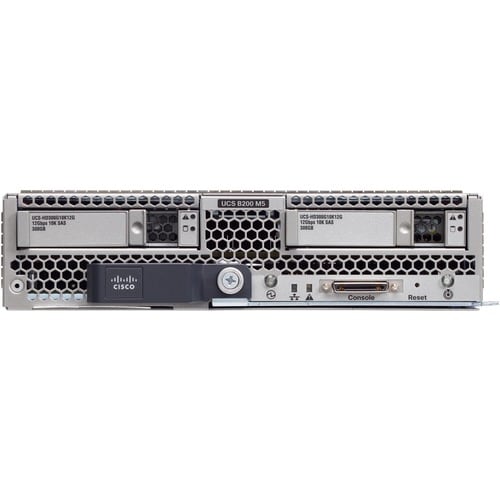

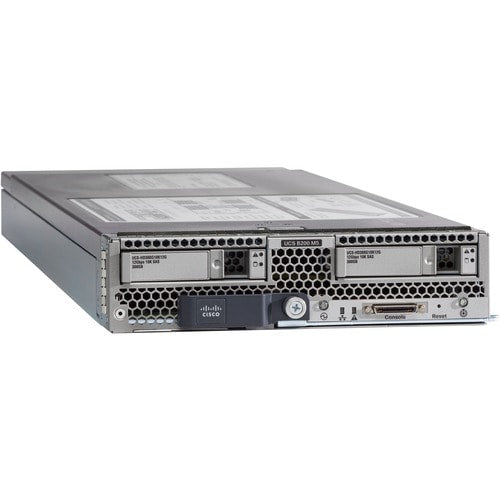

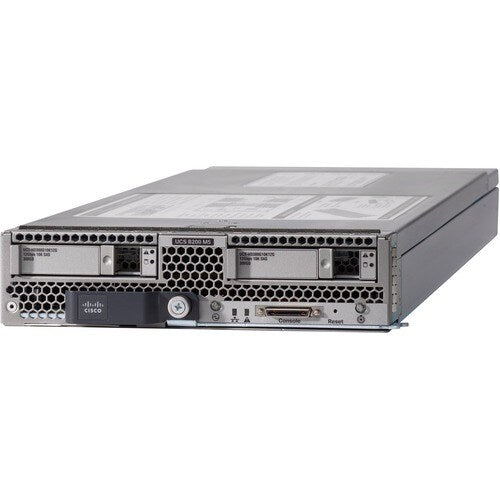

The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity
The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- RAID provides data reliability, fault tolerance and improves overall performance
- With 384 GB memory, users can run multiple programs simultaneously without losing performance
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | United States |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| 40 Gigabit Ethernet | |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Serial ATA | |
| RAID Supported | Yes |
| I/O Expansions | |
| "Number of Internal 2.5"" Bays" | 2 |
| Number of Total Expansion Bays | 2 |
| Hot Swappable Bays | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 15.98 lb (7250 g) |
| Form Factor | Blade |
| Height | 1.95" (49.53 mm) |
| Width | 8" (203.20 mm) |
| Depth | 24.40" (619.76 mm) |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | UCS-SP-B200M5C-S |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS B200 M5 Server |
| Product Series | B200 M5 |
| Brand Name | Cisco |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 3 TB |
| Standard Memory | 384 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 12 |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 24 |
| Processor | |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Gold |
| Processor Model | 5218R |
| Processor Core | Icosa-core (20 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Generation | 2nd Gen |
