Acerca del producto

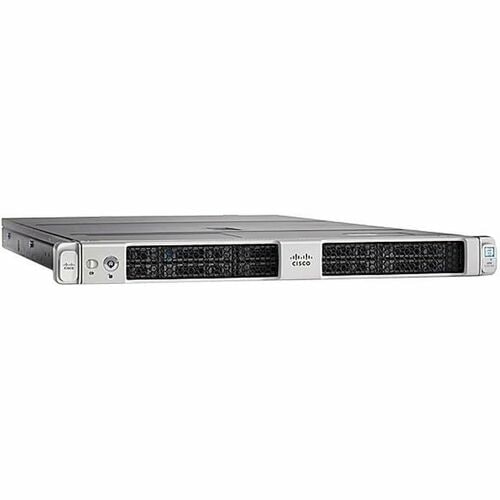

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the 2nd Generation Intel® Xeon® Scalable Processors, DDR4-3200MHz memory, and the new 512GB Intel® Optane™ Persistent Memory Modules (PMem). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 server includes one dedicated internal modular LAN on motherboard (mLOM) connector for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- RAID provides data reliability, fault tolerance and improves overall performance
- 32 GB powerful memory for any computational task
Especificaciones técnicas
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
| Controllers | |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Number of Power Supplies Supported | 2 |
| Hot Swappable Power Supply | Yes |
| I/O Expansions | |
| "Number of Internal 2.5"" Bays" | 10 |
| Number of Total Expansion Bays | 10 |
| Total Number of Expansion Slots | 2 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 10 |
| PCI Express Details | two 2 PCI Express (PCIe) 3.0 slots |
| Operating System | |
| Operating System Supported | Windows Server 2022 Standard |
| SuSE Linux Enterprise Server | |
| Windows Server 2022 Datacenter | |
| Red Hat Enterprise Linux | |
| Windows Server 2019 Datacenter | |
| Windows Server 2019 Standard | |
| Physical Characteristics | |
| Weight (Approximate) | 59.97 lb (27200 g) |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 18.98" (482.09 mm) |
| Depth | 30.98" (786.89 mm) |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | UCSSPRC220M5A1RF |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS C220 M5 Server |
| Product Series | C220 M5 |
| Brand Name | Cisco |
| Product Condition | Refurbished |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Remote Management Controller | Baseboard Management Controller (BMC) |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 3 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 2 |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 24 |
| Processor | |
| Cache | 16.50 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4116 |
| Processor Core | Dodeca-core (12 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Generation | 2nd Gen |
