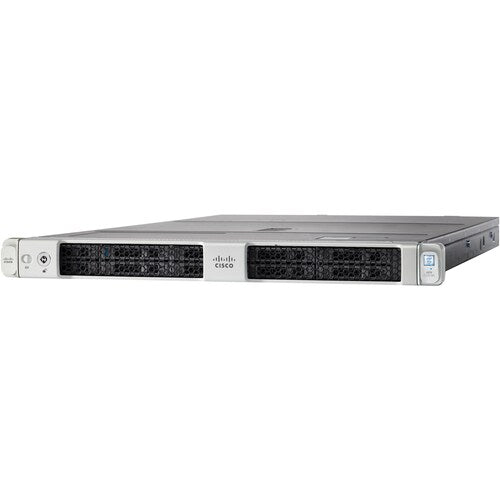

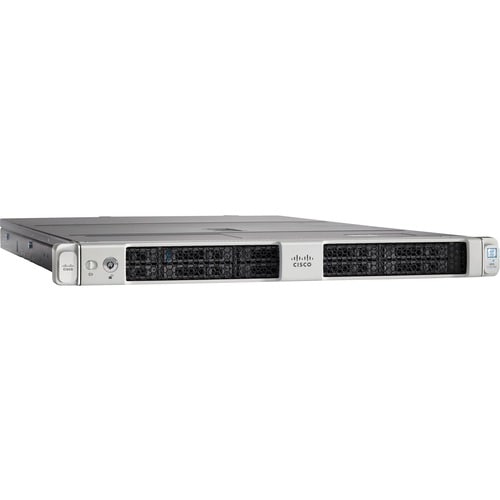

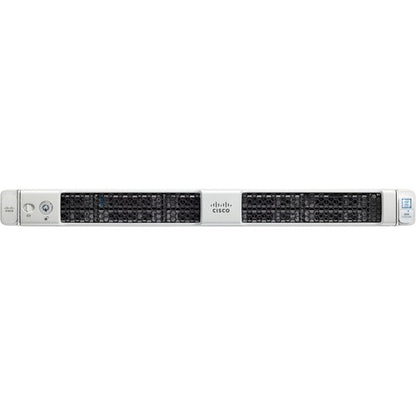

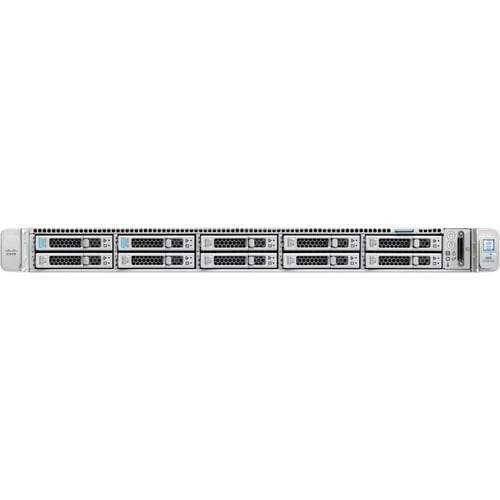

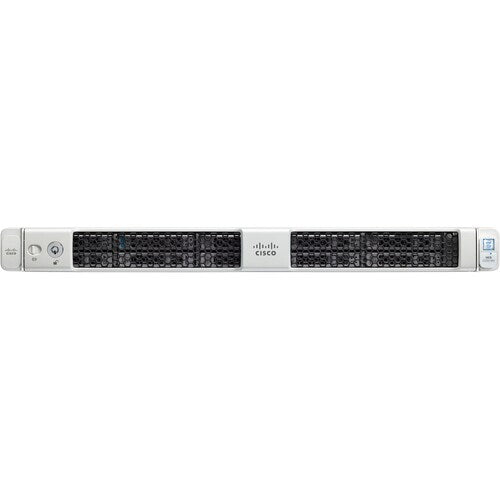

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and up to 128GB capacities, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- Provides 2 USB ports for responsive and expanded device connections
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- 12Gb/s SAS interface for high speed and reliability
- Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
- Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
Especificaciones técnicas
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | Pilot 4 |
| Graphics Memory Capacity | 16 MB |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Processor | |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| Memory | |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 24 |
| Physical Characteristics | |
| Weight (Approximate) | 37.50 lb (17009.71 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 18.98" (482.09 mm) |
| Depth | 30.98" (786.89 mm) |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | UCSC-C220-M5SX |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS C220 M5 Barebone System |
| Product Series | C220 M5 |
| Brand Name | Cisco |
