Acerca del producto

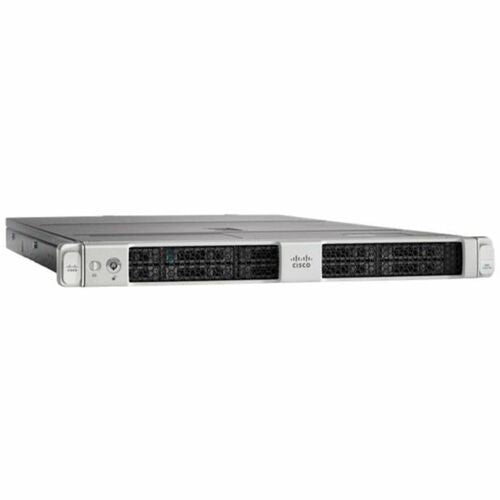

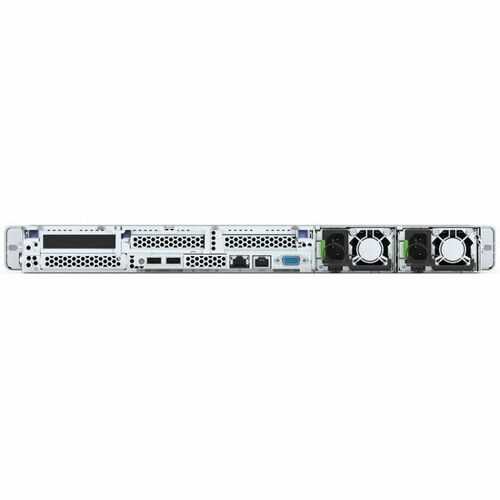

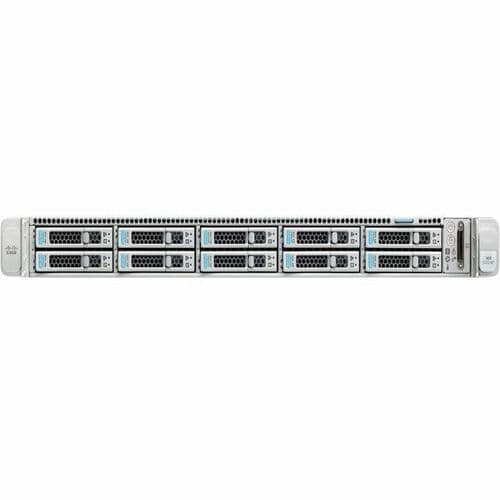

The Cisco UCS C220 M7 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the 4th Gen Intel® Xeon® Scalable Processors (codenamed Sapphire Rapids), 16 DIMM slots per CPU for DDR5-4800 Memory DIMMs with DIMM capacity points up to 128GB.
- With 2 USB ports, connect/disconnect devices while not having to shut down the system
- DDR5 SDRAM slot for convenient installation of memory
- Serial ATA interface provides quick data transfer and greater throughput
- Featuring Gigabit Ethernet port for ultra-fast network speeds
- Perform computational tasks effectively accrediting the Xeon Gold processor
Especificaciones técnicas
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA |
| SAS | |
| Controllers | |
| Controller Type | Serial ATA |
| Serial Attached SCSI (SAS) | |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Memory | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 30" (762 mm) |
| Processor | |
| Processor Supported | Xeon Silver |
| Xeon Platinum | |
| Xeon Gold | |
| Xeon Bronze | |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | UCSCC220M7S |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS C220 M7 Barebone System |
| Product Series | C220 M7 |
| Brand Name | Cisco |
