Acerca del producto

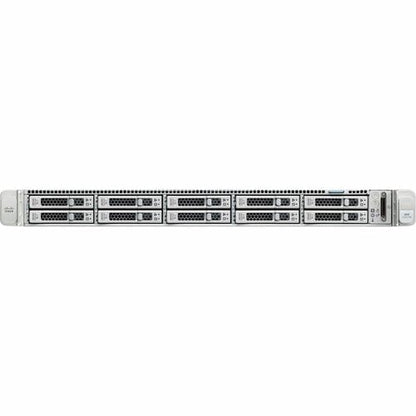

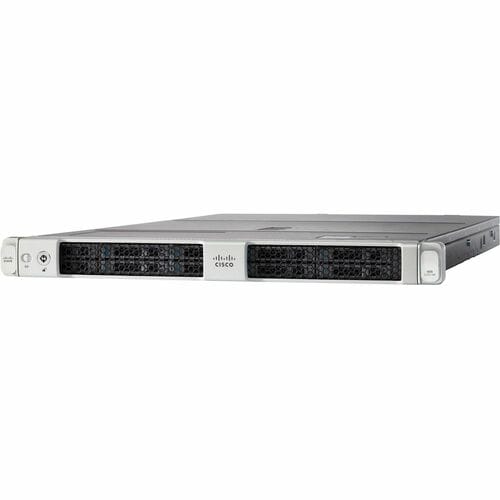

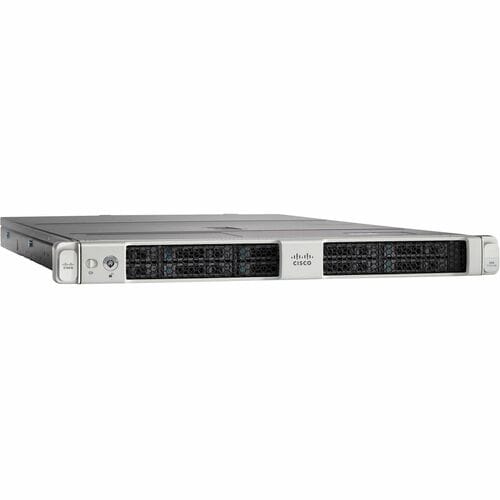

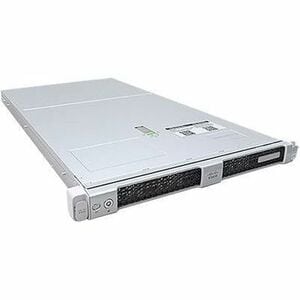

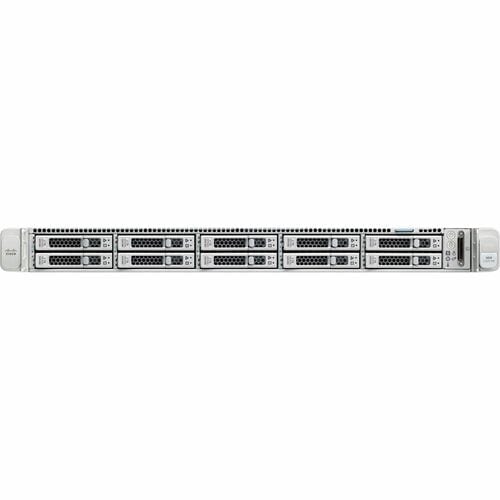

The UCS C225 M6 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the AMD CPUs, 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with DIMM capacity points up to 128 GB. The maximum memory capacity for 2 CPUs is 4 TB (for 32 x 128 GB DDR4 DIMMs)
- Featuring 2 USB ports to connect USB-compatible devices
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Serial ATA interface provides quick data transfer and greater throughput
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- Perform computational tasks effectively accrediting the EPYC processor
Especificaciones técnicas
| Chipset | |
| Chipset Manufacturer | AMD |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Controllers | |
| Controller Type | Serial ATA |
| Serial Attached SCSI (SAS) | |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of Expansion Slots | 3 |
| Operating System | |
| Operating System Supported | Windows Server 2022 Datacenter |
| Windows Server 2019 Standard | |
| Windows Server 2019 Datacenter | |
| Processor | |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| Memory | |
| Maximum Memory Supported | 8 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Frequency | 50 Hz |
| 60 Hz | |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA |
| SAS | |
| Supported Storage Drive Types | SSD |
| HDD | |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Physical Characteristics | |
| Weight (Approximate) | 42.55 lb (19300 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 30" (762 mm) |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | UCSCC225M6S |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | C225 M6 Barebone System |
| Product Series | C225 M6 |
| Brand Name | Cisco |
