Acerca del producto

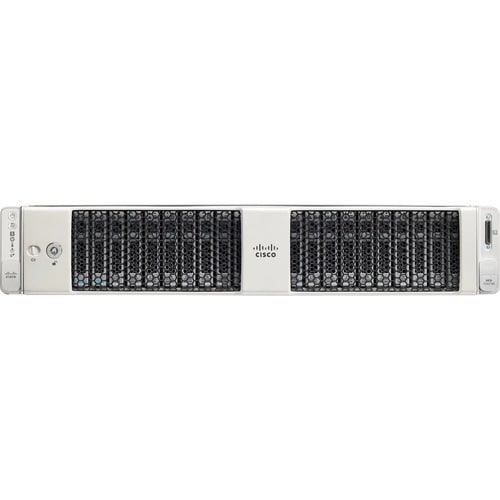

The UCS C240 M6 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake), 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with DIMM capacity points up to 256 GB. The maximum memory capacity for 2 CPUs is listed here:
- 8 TB (32 x 256 GB DDR4 DIMMs), or
- 12 TB (16 x 256 GB DDR4 DIMMs1 and 16 x 512 GB Intel® Optane™ Persistent Memory Modules (PMEMs)).
- Provides 2 USB ports for responsive and expanded device connections
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- 12Gb/s SAS interface for high speed and reliability
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Perform computational tasks effectively accrediting the Xeon Bronze processor
Especificaciones técnicas
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA III |
| SAS-3 | |
| Controllers | |
| Controller Type | Serial ATA/600 |
| 12Gb/s SAS | |
| RAID Supported | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Memory | |
| Maximum Memory Supported | 8 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 32 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.42" (86.87 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 30" (762 mm) |
| Processor | |
| Processor Supported | Xeon Gold |
| Xeon Bronze | |
| Xeon Platinum | |
| Xeon Silver | |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | UCSC-C240-M6SN |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS C240 M6 Barebone System |
| Product Series | C240 M6 |
| Brand Name | Cisco |
