Acerca del producto

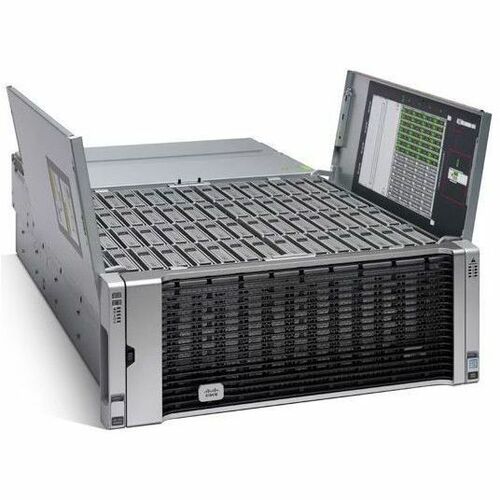

The Cisco UCS S3260 Storage Server is a modular storage server with dual M5 server nodes and is optimized for large datasets used in environments such as big data, cloud, object storage, video surveillance, and content delivery.
The UCS S3260 server helps you achieve the highest levels of data availability and performance. With dual-node capability that is based on the 2nd Gen Intel® Xeon® Scalable processors, the server features up to 1080 TB of local storage in a compact 4-Rack-Unit (4RU) form factor. The drives can be configured with enterprise-class Redundant Array of Independent Disks (RAID) redundancy or with a pass-through Host Bus Adapter (HBA) controller. Network connectivity is provided up to 100G Cisco VIC or third-party adapters, with expanded unified I/O capabilities for data migration between Network-Attached Storage (NAS) and SAN environments. This storage-optimized server comfortably fits in a standard 32-inch-depth rack, such as the Cisco® R42610 Rack.
The UCS S3260 server helps you achieve the highest levels of data availability and performance. With dual-node capability that is based on the 2nd Gen Intel® Xeon® Scalable processors, the server features up to 1080 TB of local storage in a compact 4-Rack-Unit (4RU) form factor. The drives can be configured with enterprise-class Redundant Array of Independent Disks (RAID) redundancy or with a pass-through Host Bus Adapter (HBA) controller. Network connectivity is provided up to 100G Cisco VIC or third-party adapters, with expanded unified I/O capabilities for data migration between Network-Attached Storage (NAS) and SAN environments. This storage-optimized server comfortably fits in a standard 32-inch-depth rack, such as the Cisco® R42610 Rack.
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance
Especificaciones técnicas
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Processor & Chipset | |
| Number of Processors Supported | 2 |
| I/O Expansions | |
| Number of Total Expansion Bays | 56 |
| "Number of 3.5"" Bays" | 56 |
| Controllers | |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Storage | |
| Number of Hard Drives Supported | 56 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 28 |
| Number of Solid State Drive Installed | 0 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.88" (174.75 mm) |
| Width | 17.46" (443.48 mm) |
| Depth | 32" (812.80 mm) |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 2.0 Ports | 2 |
| Number of VGA Ports | 1 |
| General Information | |
| Product Type | NAS Storage System |
| Manufacturer Part Number | UCSSS3260 |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | S3260 M5 NAS Storage System |
| Product Series | S3260 M5 |
| Brand Name | Cisco |
