Acerca del producto

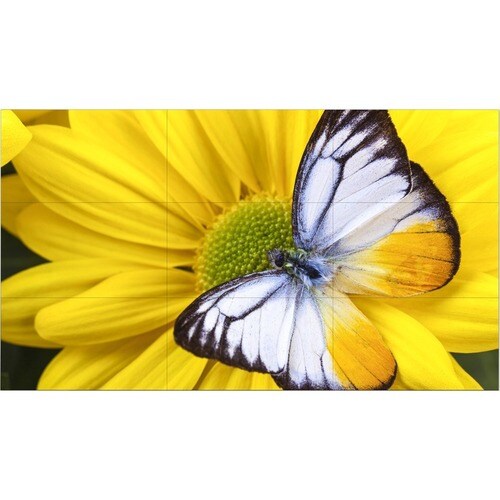

NEC's complete 55" 2x2 LCD TileMatrix™ Digital Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp and TileCut technologies, combined with the ultra-narrow bezel design of the NEC UN552S/UN552VS and the full adjustment capabilities of the Peerless DS-VW775 mount, provide for a near seamless video wall without the need for additional third-party equipment.
- Bundled solution with everything required for a 2x2 video wall makes configuration and installation easy
- Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
- SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
- 700cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
- New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
- Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
- NEC Display Wall Calibrator, MultiProfiler, SpectraViewII and NaViSet Administrator 2 software compatible
- Digital Signage Display - Ideal for rack, passageway, booth or display counter
- 55" (1397 mm) NEC Display Signage Display - Ideal for showing different types of advertisements and content
- Experience luminescent visual images with LCD display
- Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
- Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
- Direct LED backlight technology for a consistent picture quality from corner to corner
Especificaciones técnicas
| Network & Communication | |
| Ethernet | Yes |
| Miscellaneous | |
| Application/Usage | Commercial |
| Package Contents |
|
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Video | |
| Brightness | 700 cd/m² |
| Scan Format | 1080p |
| Physical Characteristics | |
| Weight (Approximate) | 56.88 lb (25800 g) |
| Height | 26.82" (681.20 mm) |
| Width | 47.66" (1210.50 mm) |
| Depth | 3.88" (98.60 mm) |
| VESA Mount Standard | 400 x 400 |
| Display & Graphics | |
| Pixel Pitch | 24.80 mil (0.63 mm) |
| Display Resolution | 1920 x 1080 |
| Screen Size | 55" (1397 mm) |
| Number of Screens | 4 |
| Display Screen Type | LCD |
| Backlight Technology | Direct LED |
| Video Wall Configuration | 2x2 |
| Technical Information | |
| Panel Technology | Super In-plane Switching (S-IPS) Technology |
| Video Wall Compatible | Yes |
| Bezel Width (Bottom) | 17.32 mil (0.44 mm) |
| Bezel Width (Top) | 17.32 mil (0.44 mm) |
| Bezel Width (Left) | 17.32 mil (0.44 mm) |
| Bezel Width (Right) | 17.32 mil (0.44 mm) |
| Operation Hours | 24 Hours/7 Days |
| General Information | |
| Product Type | Digital Signage Display |
| Manufacturer Part Number | UN552S-TMX4P |
| Manufacturer Website Address | http://www.sharp-nec-displays.com/ |
| Manufacturer | Sharp |
| Product Model | UN552S-TMX4P |
| Product Name | 55" LED Backlit 0.88mm Ultra-Narrow Bezel 2x2 Video Wall Bundle |
| Product Line | MultiSync |
| Brand Name | NEC Display |

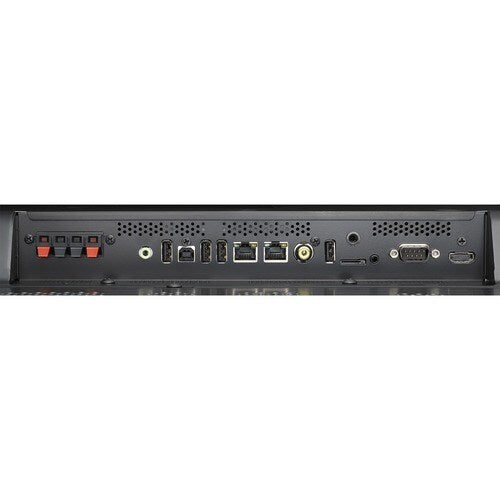

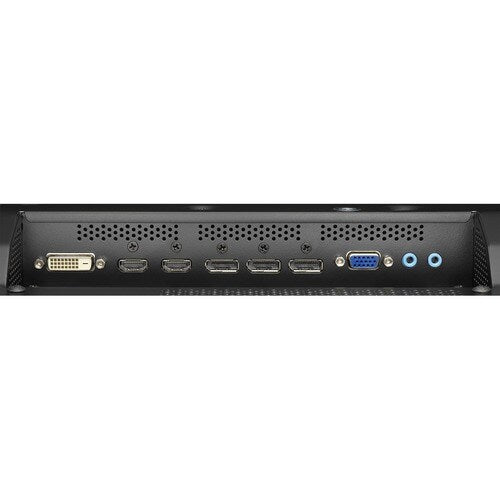

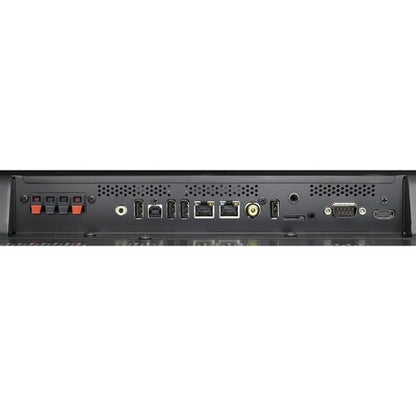

| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| DisplayPort | Yes |
| Number of HDMI Inputs | 2 |
| Number of USB 2.0 Ports | 2 |
| Serial | Yes |
| Number of DisplayPorts | 2 |
