Acerca del producto

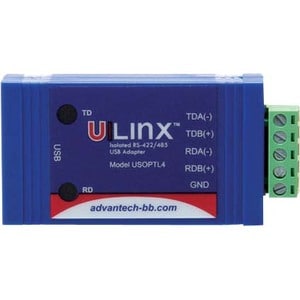

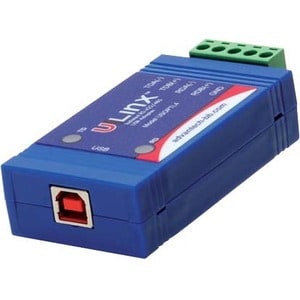

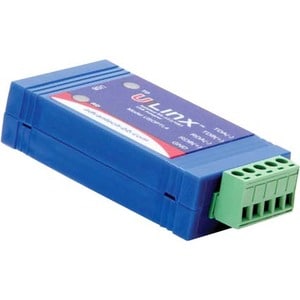

These compact, isolated USB to RS-232 and USB to RS-422, and RS-485 converters allow you to add an asynchronous serial port to your USB only PC. The built in 2 kV isolation protects your port from dangerous ground loops. They are perfect for connecting to remote devices or programming ports in field service applications. They are USB 2.0 compatible. Model USO9ML2 is the RS-232 version and supports hand shake signals as well as data at speeds up to 460.8 Kbps. Model USOPTL4 is the RS-422 and RS-485 version and supports data rates up to 460.8 Kbps. RS-485 2-Wire and 4-Wire modes are selected using a DIP Switch. If you don't need isolation, use model USPTL4. Windows operating systems up to Windows 7 (32 and 64 bit) are supported. The USOPTL4 is equipped with our signature high retention USB port. The RS-422/485 versions have a removable terminal block. Need a strain relief for your RS-422 or RS-485 cable? Check out the accessories tab for our TB5P508SR-2PK.
- With data transfer adapter transfer files to any device with the great convenience
- Serial/USB adapter is easy to be replaced
Especificaciones técnicas
| Physical Characteristics | |
| Weight (Approximate) | 6.72 oz (190.51 g) |
| Height | 6" (152.40 mm) |
| Width | 5.50" (139.70 mm) |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Data Transfer Adapter |
| Manufacturer Part Number | USOPTL4 |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Name | USB To Isolated 422/485 W/Plug Term Block And Leds |
| Brand Name | B+B SmartWorx |
| Technical Information | |
| Features | LED Indicator |
| Surge Protection | |
| Connector Type on First End | Terminal Block RS-422/485 Serial |
| Connector Type on Second End | USB 2.0 Type B - Female |
| Adapter Type | Serial/USB |
| Connector on First End Details | Terminal Block RS-422/485 Serial |
| Connector on Second End Details | 1 x Type B USB 2.0 USB Female |
