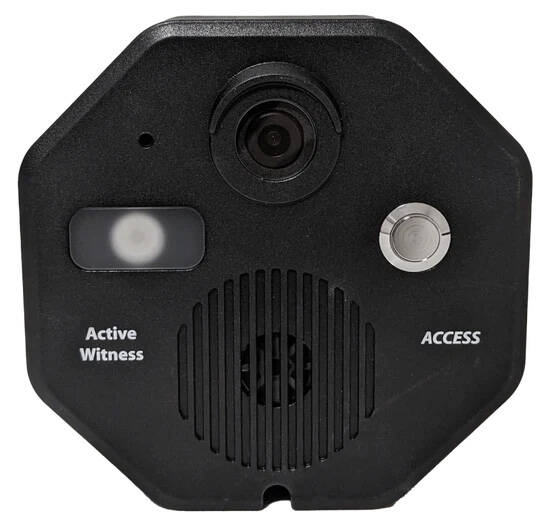

SIMA is a multi purpose security device from a local Canadian brand, Active Witness combining these key functions:
- Door Access Control
- Intercom / Video Doorbell with remote unlock
- ONVIF IP Security Camera built-in
- On Demand Video
Forget access fobs that might be lost or copied. SIMA uses face recognition and mobile credentials for secure and simple access control using the devices employees and visitors already have.
The SIMA app and web console, allows for easy site management of one or multiple doors, and gives users the ability to view live video on demand, answer the doorbell when a visitor arrives and remotely unlock doors as needed.
Connect SIMA to an ONVIF compatible NVR or recording software and you can monitor and record building door(s) through existing IP surveillance infrastructure.
SIMA's mobile credentials that can be easily and remotely issued, revoked, managed and shared securely
SIMA is cloud based with subscription billed directly to the end user with opportunities for dealer revenue sharing.
Ask your rep about SIMA.
Sima by Active Witness Features:
- Door Access Control
- Facial Verification and Mobile Credentials
- Video Doorbell Intercom with Remote Door Unlock
- Built in ONVIF compatible IP Camera
- Cloud-Based easy set up and credential management
- Weekly Scheduler
- Credential Expiry Option
- Access Logs
- Remote Enrollment & Management
- Liveness Detection & Anti-Spoofing
Sima by Active Witness Specifications:
- Connected Capacity: License Required with capacity up to(10,25,50, 100+)
- Network Security: TLS (1.2) (HTTPS)
- Environment: IP65, keep in sheltered location.
- Temperature: -40°C - 50°C (-40°F - 122°F)
- Humidity: 10-90% RH (Non-Condensing)
- Power Input: POE, or 1 2V DC @ 2A
- Lock Control Output: 12V Max 300mA on PoE, Max 400mA on 12V input
- Internet required, wired connection
- Size: 5.11"" X 5.11"" X 2"" (13cm x 13cm x 5 cm)
- Mounting Height: 5'3"" to the center of the device (160 cm) *Suggested
- Mounting Capability: Standard 4' Utility Box in sheltered location
- Camera:
- Resolution: 1/2.8"" 2.1M CMOS
- Total Pixel: 1945(H) X 1109(V)
- Focal Length: 4mm F:2.6
- Lens: Type Fixed
- Iris Type: Auto Exposure
- Field Angle: D: 103, H:88, V:46
- Minimum Illumination: 0.09Lux (F2.6)
- SN Ratio: 50dB
- Shutter Speed: Auto I Manual (1/15 ~ 1/32000), Anti Flicker, Slow Shutter (1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10)
- Dynamic Range Conf:. WDR(DOL)
- Dynamic Range: 120dB or above
- DNR: 3D-DNR
- Privacy Mask: 16 Programmable Zone
- AGC: auto
- Image Processing: Exposure, White balance, Sharpness
- Encoder (Video/Audio):
- Video Compression H.264, H.265, MJPEG
- H.264 Profile: MP, HP
- H.265 Profile: MP
- Max Resolution: 1920 X 1Q8Q
- Multiple Stream: 1080p30 + D1(704x480 or 704x576) p30 with H.264, H.265 + MJPEG
- Support Resolution (H.264): 1080p/720p/VGA/D1/CIF
- Support Resolution (H.265): 1080p/720p/VGA/D1/CIF
- Support Resolution (MJPEG): 1280x 720/800x600/VGA/768x432/D1/CIF
- Video bps: 100k~1 OM, Multi-rate for Preview and Recording
- Bitrate Control: Multi Streaming CBR/VBR at H.264, H.265 (Controllable frame rate and Bandwidth)
- Audio Compression: G.711
- Special Feature: Smart LBR, ROI
- Security:
- Network Protocol RTP(UDP/TCP): TCP/IP, UDP, AutoIP, RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1 /v2/v3(MIB-2), ONVIF
- Security: HTTPS(SSL), IP Filtering, 802.1x,Digest Authentication
- SIPNOIP Support: 4mm F:2.6
