Acerca del producto

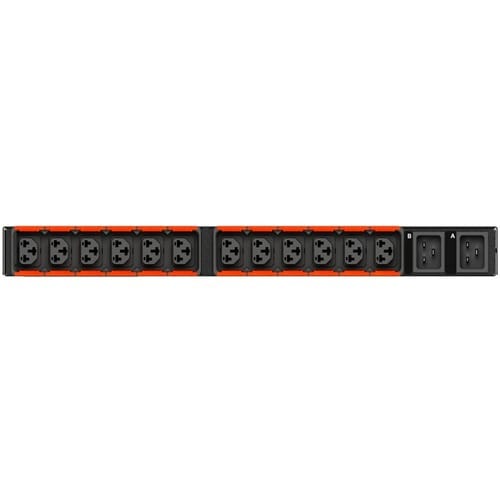

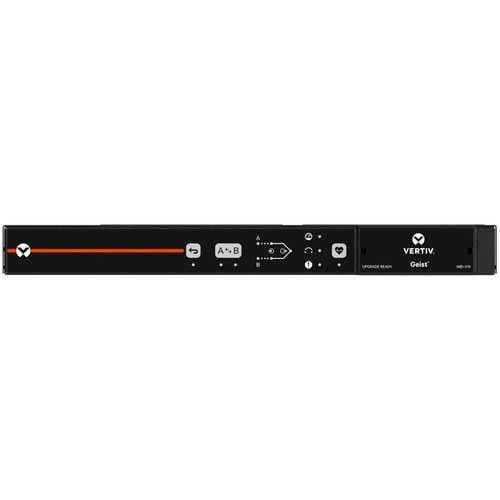

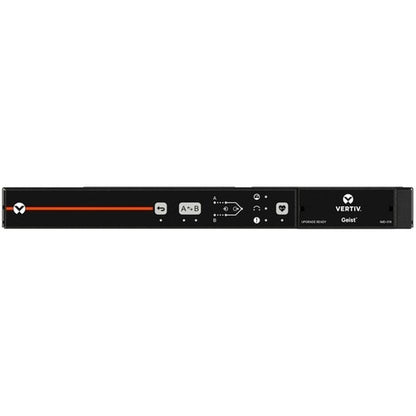

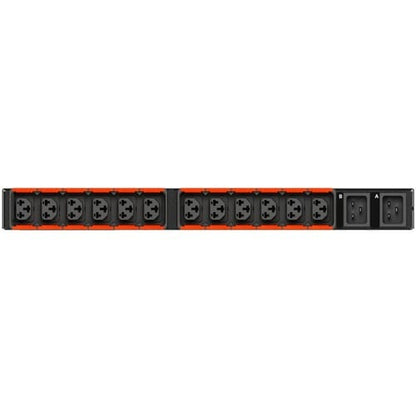

Rack Transfer Switch (RTS) delivers redundant power to single corded devices. The RTS automatically detects the loss of power and switches the power load (no phase-syncronization required) to the alternative power source in less than 4-8 milliseconds without the need for human intervention.
Benefits
- With the Geist Upgradeable hot-swap technology, users may easily transform basic rPDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD).
- Reliable rack power distribution.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
- Standard three-year warranty, upgraded to a five-year warranty with product registration.
Especificaciones técnicas
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Technical Information | |
| Receptacles | 12 x Combination C13/C19 |
| Plug/Connector Type | IEC 60320 C20 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.72" (43.69 mm) |
| Width | 17" (431.80 mm) |
| Depth | 18" (457.20 mm) |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Output Voltage | 100 V AC |
| 240 V AC | |
| Current | 20 A |
| Load Capacity (Watt) | 3.60 kW |
| General Information | |
| Product Type | Automatic Transfer Switch |
| Manufacturer Part Number | VA1U2100 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | AU01X1R0-12CF17-2C20C20A900-D |
| Product Name | AU01X1R0-12CF17-2C20C20A900-D Automatic Transfer Switch |
| Brand Name | Vertiv Geist |
