Acerca del producto

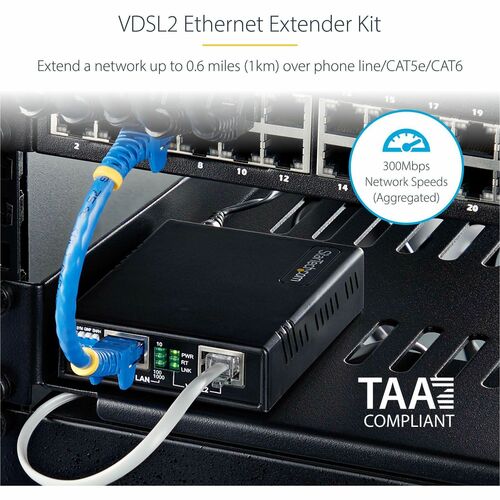

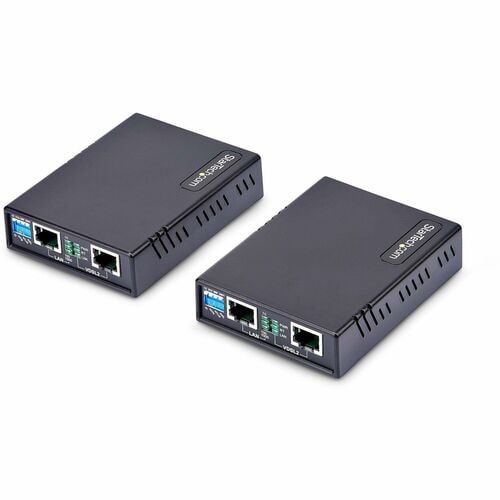

Extend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km).
Extend Network Connectivity
Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies.
Thoughtful Design

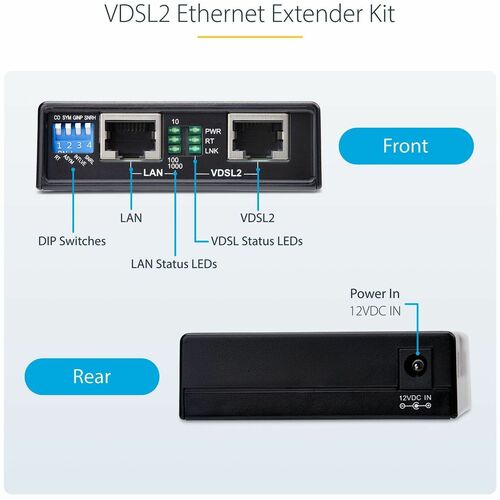

The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity.
Versatile Applications
The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension.
- VDSL2 EXTENDER: Extend a network over VDSL2, using UTP, CAT5e/6, or RJ11 cabling, at distances up to 0.6mi (1km); Up to 300Mbps (aggregated) at shorter distances; Supports VDSL2 35b/30a/17a, ITU-T G.993.5 G.Vectoring, and G.998.4 G.INP standards

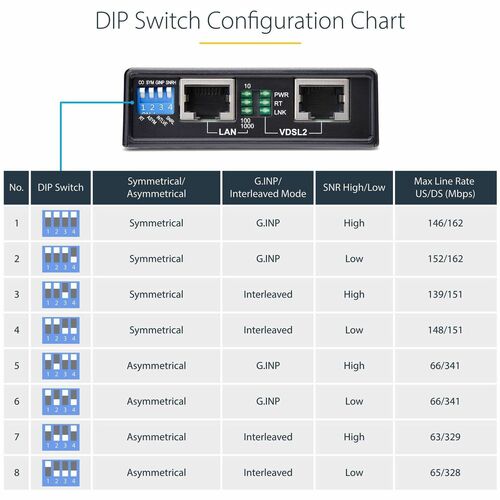

- 8 PROFILE CONFIGURATIONS: Customize the installation with DIP switch selectable settings; Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance
- INTUITIVE INDICATORS: Gigabit Ethernet Extender features four LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity

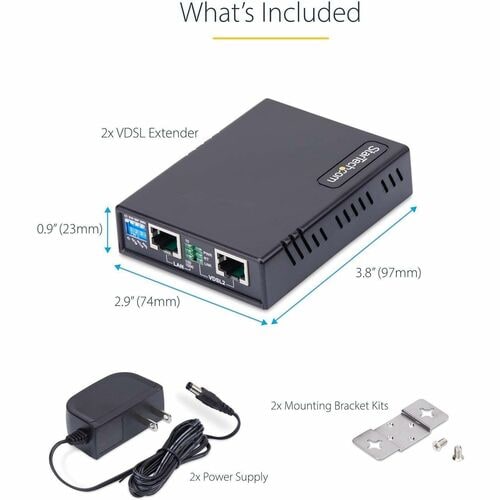

- VERSATILE MOUNTING OPTIONS: TAA-compliant Long Range LAN Booster can be mounted on a wall using the included mounting hardware, or placed on a shelf or other surface; Includes two power adapters, one for each VDSL Extender unit

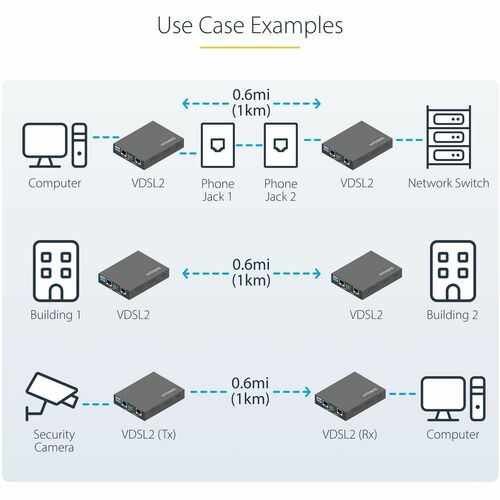

- APPLICATIONS: Works with third-party VDSL2 IP DSLAMs in CPE (RT) mode; Extends a network to remote areas, supporting applications such as video surveillance/digital signage; 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension
Especificaciones técnicas
| Power Description | |
| Input Voltage | 230 V AC |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| Miscellaneous | |
| Package Contents |
|
| TAA Compliant | Yes |
| Technical Information | |
| Maximum Data Transfer Rate | 37.50 MB/s |
| Maximum Extended Range | 3280.84 ft (1000000 mm) |
| Physical Characteristics | |
| Length | 3.80" (96.52 mm) |
| Height | 0.90" (22.86 mm) |
| Width | 2.90" (73.66 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Plastic |
| General Information | |
| Product Type | Network Extender |
| Manufacturer Part Number | VDSLLANEXTENDER1G |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | Network Extender |
| Brand Name | StarTech.com |
