Acerca del producto
The all new Vertiv™ Liebert® Rack PDU and Rack PDU Extenders are specifically designed for integration between the GXT5 Lithium-Ion UPS and power distribution in the rack or to adjacent racks.
- A device fitted with multiple outputs for the distribution of electric power
- Basic PDU is the space-saving and cost-effective way to deliver power
Especificaciones técnicas
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Protection Type | Overcurrent Protection |
| Receptacle Type | NEMA L14-30R |
| NEMA L6-30R | |
| PDU Type | Basic |
| Receptacle Detail | 2 x NEMA L6-30R |
| 4 x NEMA L14-30R | |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Input Current | 60 A |
| Input Voltage Range | 100 V AC - 120 V AC |
| 200 V AC - 240 V AC | |
| Power Rating (VA) | 208 VA |
| Power Rating (Watt) | 11.50 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP0N6202 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 / Box |
| Manufacturer | Vertiv |
| Product Model | VP0N6202 |

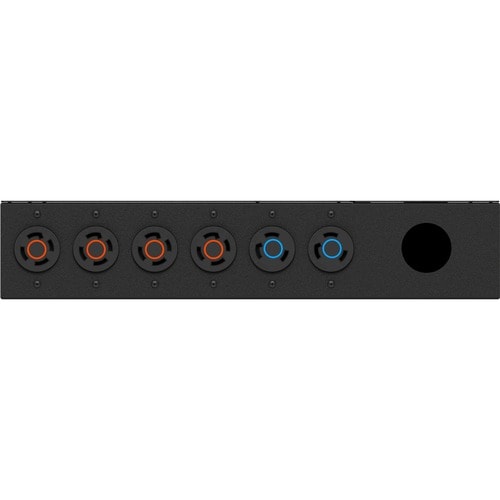

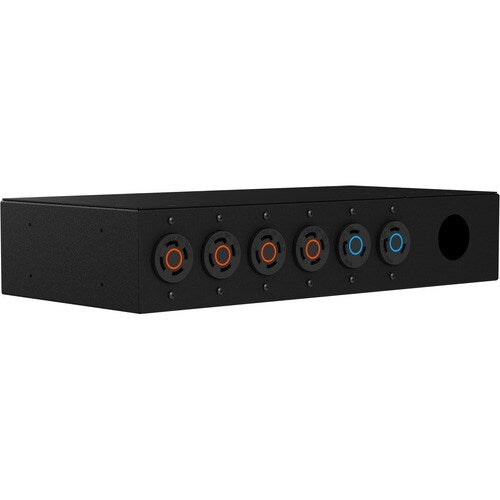

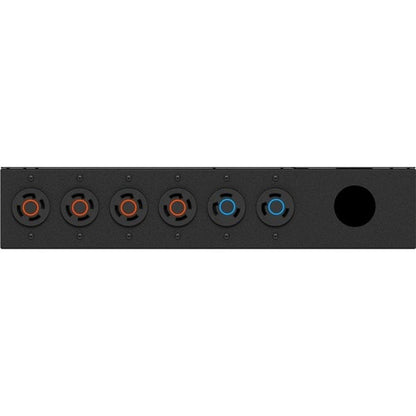

| Product Name | Basic PDU - Horizontal, 120/208V, (4) NEMA L14-30R, (2) L6-30R |
| Brand Name | Vertiv Liebert |
| Physical Characteristics | |
| Length | 3.39" (86.11 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Width | 17" (431.80 mm) |
| Depth | 8" (203.20 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black Powder Coat |
| Color Family | Black |
