The Vertiv Geist Monitored Rack PDU VP4N30AR is a 30A, 120V/208V WYE, 0U, vertical rack power distribution unit with input power monitoring. It has (36) IEC C13, (6) IEC C19, and (2) NEMA 5-20R receptacles and NEMA L21-30P plug providing 8.6kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime

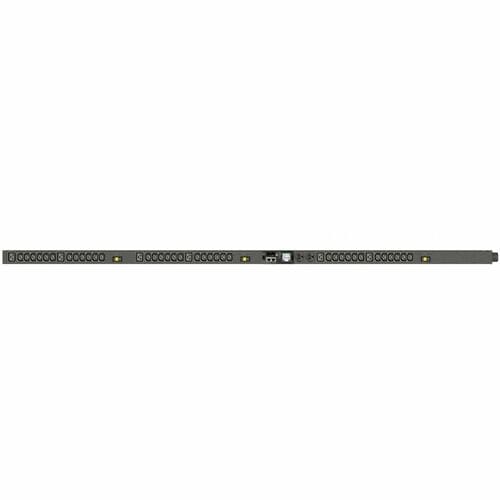

- VP4N30AR is a vertical rack mount PDU with (36) IEC C13, (6) IEC C19, and (2) NEMA 5-20R receptacles

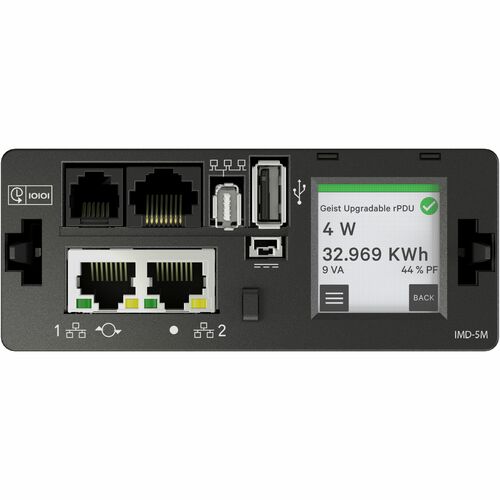

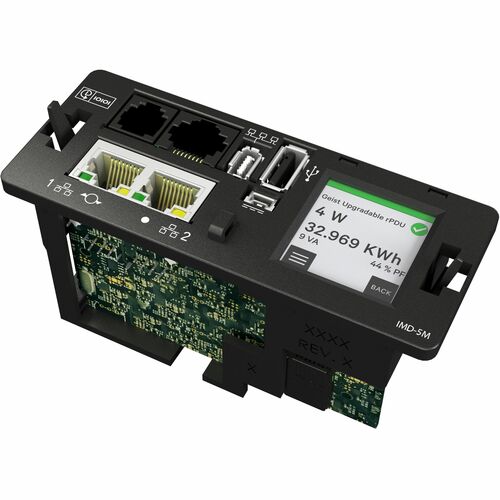

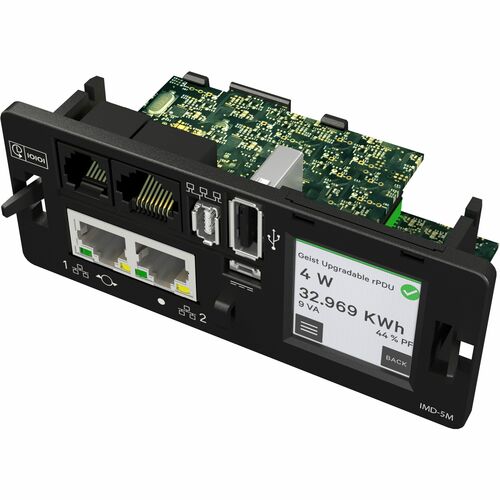

- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
Especificaciones técnicas
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Management | |
| Management | |
| Remote Outlet Switching | No |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| Modem (RJ-12) | Yes |
| Modem (RJ-22) | No |
| Miscellaneous | |
| Certifications & Standards | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| China Restriction of Hazardous Substances (China RoHS) | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP4N30AR |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Name | Monitored VP4N30AR PDU |
| Product Line | Geist Upgradeable |
| Brand Name | Vertiv Geist |
| Physical Characteristics | |
| Weight (Approximate) | 17 lb (7711.07 g) |
| Form Factor | Rack |
| Length | 2" (50.80 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 72" (1828.80 mm) |
| Width | 2" (50.80 mm) |
| Depth | 2" (50.80 mm) |
| Mounting Orientation | Vertical |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Voltage | 120 V AC |
| 240 V AC | |
| Input Current | 30 A |
| Input Voltage Range | 100 V AC - 120 V AC |
| 200 V AC - 240 V AC | |
| Output Voltage Range | 100 V AC - 120 V AC |
| 200 V AC - 240 V AC | |
| Power Rating (Watt) | 8.60 kW |
| Technical Information | |
| Features | Touch Screen Display |
| LCD Display | |
| Plug/Connector Type | NEMA L21-30P |
| Phase | Three Phase |
| Receptacle Type | NEMA 5-20R |
| IEC 60320 C19 | |
| IEC 60320 C13 | |
| PDU Type | Monitored |
| Receptacle Detail | 36 x IEC 60320 C13 |
| 6 x IEC 60320 C19 | |
| 2 x NEMA 5-20R | |
| Plug/Connector Detail | 1 x NEMA L21-30P |
