Acerca del producto
Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
Benefits
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a breakin the network chain occurs. Supports up to 40 rPDUs.
- Every unit is 100% tested for reliability and functionality.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- PDU allows power to be more efficiently distributed and controlled
- Provide circuit protection and easy configuration for trouble-free access
- With monitored PDU, you can remotely monitor single-or three-phase voltage easily
- Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs
Especificaciones técnicas
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 35 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Frequency | 60 Hz |
| Power Rating (Watt) | 10 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP4N31A1 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MN05M1R1-10L138-3TL6A0H10-S |
| Product Name | rPDU MN05M1R1-10L138-3TL6A0H10-S 10-Outlets PDU |
| Product Series | rPDU |
| Brand Name | Vertiv Geist |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 10 ft (3.05 m) |
| Height | 1.72" (43.69 mm) |
| Width | 17" (431.80 mm) |
| Depth | 8.50" (215.90 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black Powder Coat |
| Color Family | Black |
| Technical Information | |
| Features | LCD Display |
| Touch Screen Display | |
| Protection Type | Overcurrent Protection |
| Double Pole | |
| Plug/Connector Type | NEMA L6-30P |
| Phase | Three Phase |
| Receptacle Type | U-Lock IEC 60320 C13 |
| Load Capacity (Watt) | 10 kW |
| PDU Type | Monitored |

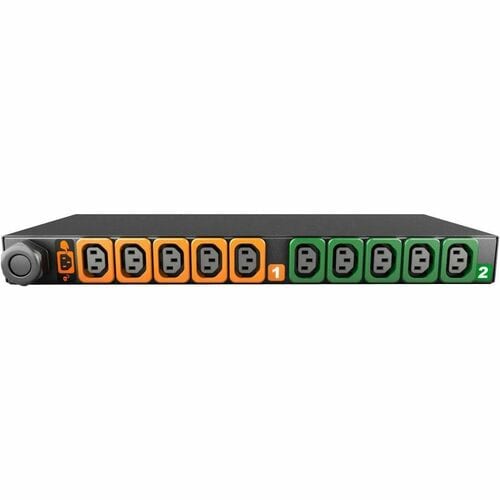

| Receptacle Detail | 10 x U-Lock IEC 60320 C13 |
| Plug/Connector Detail | 1 x NEMA L6-30P |
