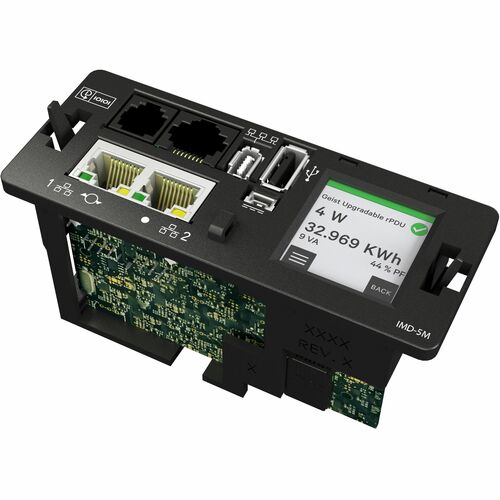

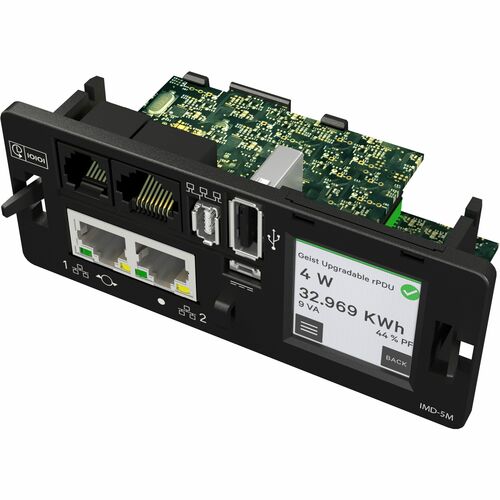

The Vertiv Geist Monitored RPDU VP4N60AE is a 60A, 208V DELTA, 3-phase, upgradeable rack power distribution unit with input power monitoring. It has 30 Combination C13/C19 outlets and a 3P+E (IP44) plug providing 17.2kW of power capacity. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of downtime from accidental disconnections and are also P-Lock compatible. This unit offers remote power monitoring and environmental sensors to remotely manage the rPDU through any web browser or serial communication. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime

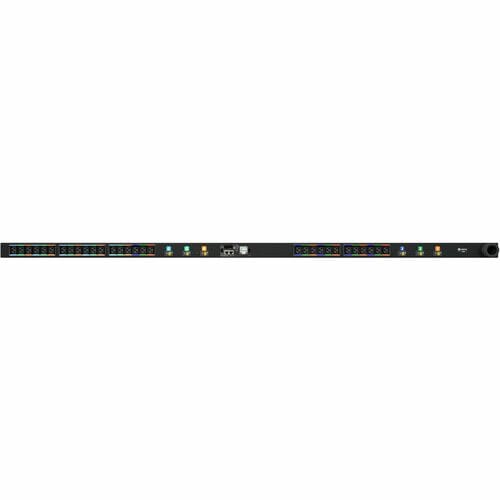

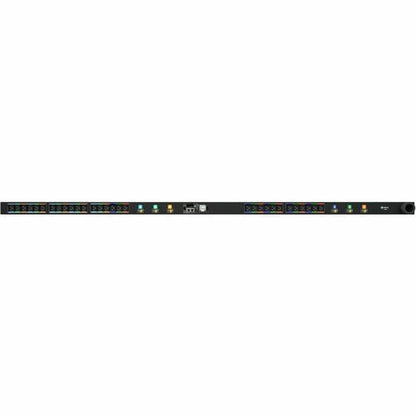

- VP4N60AE is a vertical rack mount PDU with 30 Combination C13/C19 outlets and a 3P+E (IP44) plug

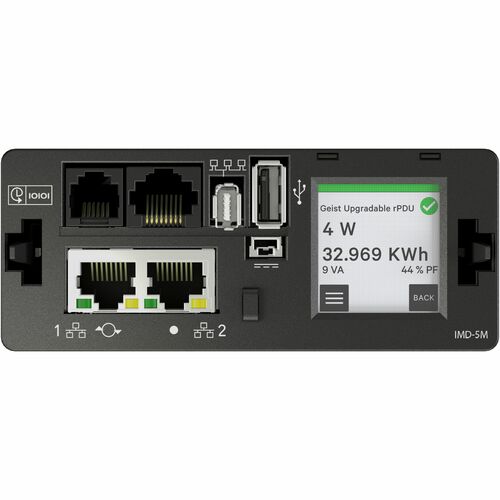

- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
Especificaciones técnicas
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Management | |
| Management | |
| Remote Outlet Switching | No |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Power Rating (Watt) | 17.20 kW |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| Modem (RJ-12) | Yes |
| Modem (RJ-22) | No |
| Miscellaneous | |
| Certifications & Standards | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| China Restriction of Hazardous Substances (China RoHS) | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP4N60AE |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Name | Monitored VP4N60AE PDU |
| Product Line | Geist Upgradeable |
| Brand Name | Vertiv Geist |
| Technical Information | |
| Features | LCD Display |
| Touch Screen Display | |
| Plug/Connector Type | 3P+E (IP44) |
| Phase | Three Phase |
| Receptacle Type | Combination C13/C19 |
| PDU Type | Monitored |
| Receptacle Detail | 30 x Combination C13/C19 |
| Plug/Connector Detail | 1 x 3P+E (IP44) |
| Physical Characteristics | |
| Weight (Approximate) | 32 lb (14514.96 g) |
| Form Factor | Rack |
| Length | 3" (76.20 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 70" (1778 mm) |
| Width | 2.10" (53.34 mm) |
| Depth | 3" (76.20 mm) |
| Mounting Orientation | Vertical |
