Acerca del producto

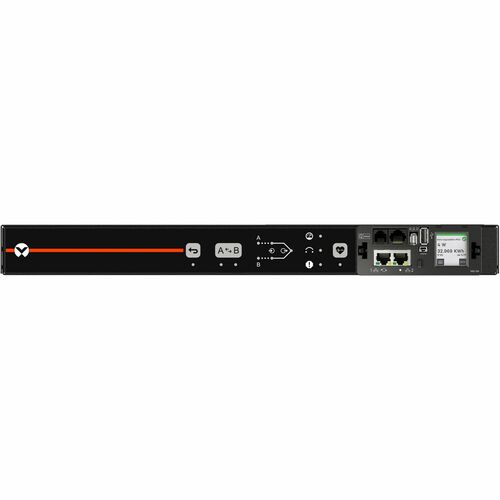

The Vertiv Geist Switched RPDU VP5N31A0 is a 30A, 120V, 1U, horizontal rack power distribution unit with input power monitoring and outlet level switching. It has (12) NEMA 5-20R receptacles and a NEMA L5-30P plug providing 2.8kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
- VP5N31A0 is a 30A, 120V, rack mount PDU with (12) NEMA 5-20R receptacles and a NEMA L5-30P plug

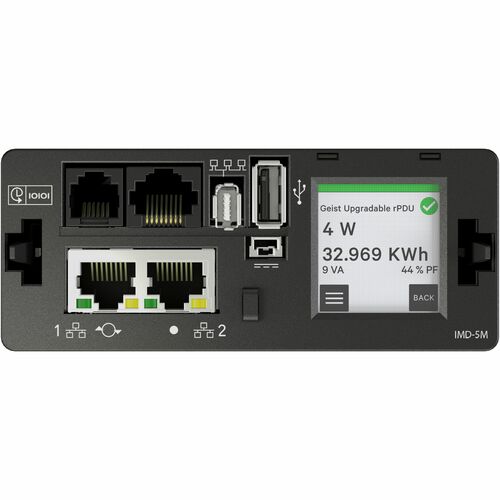

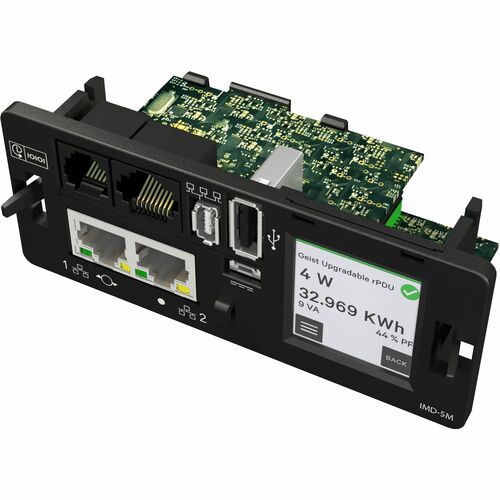

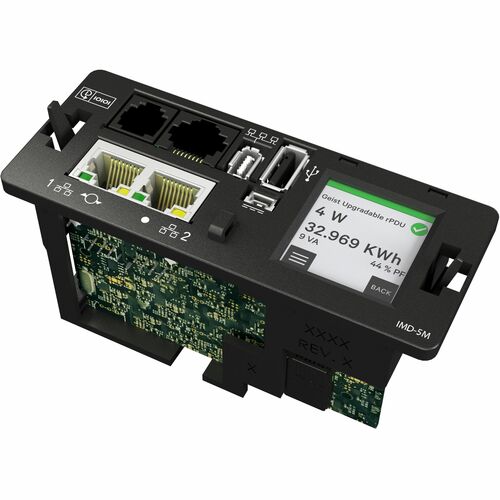

- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
Especificaciones técnicas
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Miscellaneous | |
| Certifications & Standards | UL & c-UL Listed 62368 |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Current | 30 A |
| Input Voltage Range | 100 V AC - 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Power Rating (Watt) | 2.80 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP5N31A0 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MNS3E1R6-12S203-3TL5A0H10-S |
| Product Name | GU VP5N31A0 PDU |
| Product Line | Geist Upgradeable |
| Product Series | N |
| Brand Name | Vertiv Geist |
| Technical Information | |
| Features | Touch Screen Display |
| LCD Display | |
| Protection Type | Overcurrent Protection |
| Plug/Connector Type | NEMA L5-30P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| Number of Protected Output Receptacles | 12 |
| PDU Type | Switched |
| Receptacle Detail | 12 x NEMA 5-20R |
| Plug/Connector Detail | 1 x NEMA L5-30P |
| Physical Characteristics | |
| Weight (Approximate) | 12 lb (5443.11 g) |
| Form Factor | Rack |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 10 ft (3.05 m) |
| Height | 1.72" (43.69 mm) |
| Width | 17" (431.80 mm) |
| Depth | 12" (304.80 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
