Acerca del producto

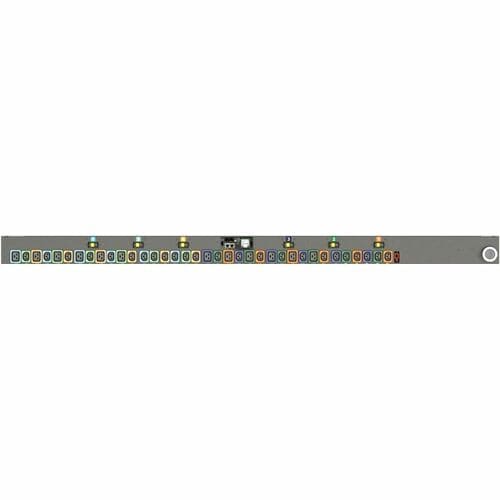

Upgradeable Switched Unit Level Monitored EC rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of input power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
Benefits
- Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with selfconfiguration of downstream devices.
- PDU is reliable for power protection and management solutions
- PDU improves efficiency, uptime and growth of data centers
- With a built-in digital current meter avoid potential overloads via switched PDUs
- Remotely control individual outlets for rebooting of locked equipment with switched PDUs
Especificaciones técnicas
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Frequency | 60 Hz |
| Power Rating (Watt) | 17.20 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP5N60A2 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MNS5MHB1-36PNB8-6PS15B0A10-S-A |
| Product Name | rPDU MNS5MHB1-36PNB8-6PS15B0A10-S-A 36-Outlets PDU |
| Product Series | rPDU |
| Brand Name | Vertiv Geist |
| Physical Characteristics | |
| Length | 66.25" (1682.75 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Width | 3.70" (93.98 mm) |
| Depth | 2.60" (66.04 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black Powder Coat |
| Color Family | Black |
| Technical Information | |
| Features | LED Display |
| Touch Screen Display | |
| Protection Type | Double Pole |
| Overcurrent Protection | |
| Plug/Connector Type | IEC 60309 3P+E 60A |
| Phase | Three Phase |
| Receptacle Type | U-Lock IEC 60320 C19 |
| U-Lock IEC 60320 C13 | |
| Load Capacity (Watt) | 17.20 kW |
| PDU Type | Switched |
| Receptacle Detail | 24 x U-Lock IEC 60320 C13 |
| 12 x U-Lock IEC 60320 C19 | |
| Plug/Connector Detail | 1 x IEC 60309 3P+E 60A |
