Acerca del producto

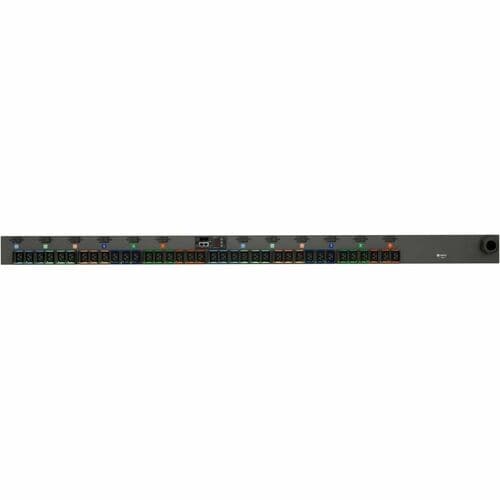

The Vertiv GeistVP6N6013is a monitored unit rack power distribution unit (rPDU). It is a 60A, 240/415V WYE, 0U, vertical rPDU with input and output level power monitoring. The 36 Combination C13/C19 outlets and a 3P+N+E (IP67) plug comes with a 3m cord, providing 34.5kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD) provides unit level monitoring, as well as serial communication and environmental monitoring. The dual ethernet ports simplify multiple PDU management with fault-tolerant daisy chaining or IP aggregation capabilities. These UL-listed, TAA-Compliant monitored rPDU are individually tested for functionality and reliability, and comes with a standard three-year warranty, which can be extended to five years if registered within 120 days after purchase.
- Monitor power consumption at the outlet-level for a detailed view of power distributed to equipment
- 36 Combination C13/C19 Outlets that accommodate C14 and C20 plugs interchangeably
- Simplify remote management of up to 50 intelligent rPDUs on a single IP address
- Individually tested, meets local compliance requirements: TAA Compliance, RoHS, China RoHS, UL
- Three-year warranty is extendable to five years if unit is registered within 120 days of purchase
Especificaciones técnicas
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP6N6013 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MNR3EPB1-36CF13-6PS56D0A10-S |
| Product Name | rPDU MNR3EPB1-36CF13-6PS56D0A10-S 36-Outlets PDU |
| Product Series | rPDU |
| Brand Name | Vertiv Geist |
| Physical Characteristics | |
| Form Factor | Vertical |
| Length | 66.25" (1682.75 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Width | 3.80" (96.52 mm) |
| Depth | 3" (76.20 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black Powder Coat |
| Color Family | Black |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 415 V AC |
| 230 V AC | |
| 346 V AC | |
| Output Voltage | 240 V AC |
| Input Current | 60 A |
| Input Voltage Range | 346 V AC - 415 V AC |
| 200 V AC - 240 V AC | |
| Input Frequency | 60 Hz |
| Power Rating (Watt) | 34.50 kW |
| Technical Information | |
| Features | LCD Display |
| Protection Type | Circuit Breaker |
| Overcurrent Protection | |
| Single Pole | |
| Plug/Connector Type | IEC 60309 60A 3P+N+E |
| Phase | Three Phase |
| Receptacle Type | Combination C13/C19 |
| PDU Type | Monitored |
| Receptacle Detail | 36 x Combination C13/C19 |
| Plug/Connector Detail | 1 x IEC 60309 60A |
