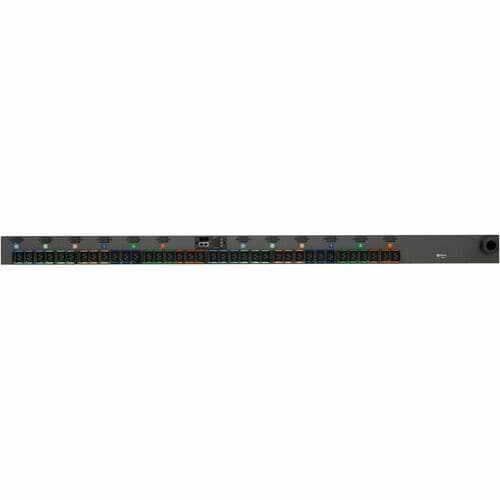

The Vertiv Geist VP7N6013 is a switched outlet level monitored rack power distribution unit (rPDU). It is a 60A, 240/415V WYE, 0U, vertical rPDU with input and outlet level power monitoring and outlet level switching. The 36 Combination C13/C19 outlets and a 3P+N+E (IP67) plug comes with a 3m cord, providing 34.5kW of power capacity. The switched rPDU allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD) provides unit level monitoring, serial communication, and environmental monitoring. The dual ethernet ports simplify multiple-PDU management with fault-tolerant daisy chaining or IP aggregation capabilities. These UL-listed, TAA-Compliant monitored rPDU are individually tested for functionality and reliability, and comes with a standard three-year warranty, which can be extended to five years if registered within 120 days after purchase.
- Allows users to remotely reboot outlets to power cycle unresponsive IT equipment.
- 36 Combination C13/C19 Outlets that accommodate C14 and C20 plugs interchangeably
- Simplify remote management of up to 50 intelligent rPDUs on a single IP address
- Individually tested, meets local compliance requirements: TAA Compliance, RoHS, China RoHS, UL
- Three-year warranty is extendable to five years if unit is registered within 120 days of purchase
Especificaciones técnicas
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP7N6013 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MNU3EPB1-36CF13-6PS56D0A10-S |
| Product Name | rPDU MNU3EPB1-36CF13-6PS56D0A10-S 36-Outlets PDU |
| Product Series | rPDU |
| Brand Name | Vertiv Geist |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Input Current | 60 A |
| Input Voltage Range | 346 V AC - 415 V AC |
| 200 V AC - 240 V AC | |
| Input Frequency | 60 Hz |
| Power Rating (Watt) | 34.50 kW |
| Physical Characteristics | |
| Form Factor | Vertical |
| Length | 66.25" (1682.75 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Width | 3.80" (96.52 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black Powder Coat |
| Color Family | Black |
| Technical Information | |
| Features | LED Display |
| Protection Type | Single Pole |
| Overcurrent Protection | |
| Plug/Connector Type | IEC 60309 60A 3P+N+E |
| Phase | Three Phase |
| Receptacle Type | Combination C13/C19 |
| PDU Type | Switched |
| Receptacle Detail | 36 x Combination C13/C19 |
| Plug/Connector Detail | 1 x IEC 60309 60A |
