Acerca del producto

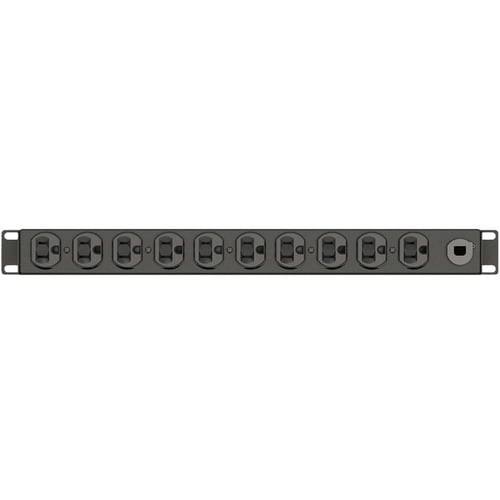

The Vertiv Geist Basic Rack PDU VP9563 is a 20A, 120V, basic 1U horizontal rack mount power distribution unit (PDU). It has 10 NEMA 5-20R receptacles and a NEMA 5-20P plug providing 1.9kW in power capacity. The Basic Rack PDU (rPDU) has a horizontal form factor taking up just 1U of space in a standard rack. It is perfect for tight spaces in edge locations and small IT environments. Every Vertiv Geist Basic Rack PDU is UL-listed and are not batch-tested. All models undergo rigorous individual tests for reliability and functionality before shipping.
- 1U form factor makes the basic rack PDU fit for tight spaces in edge locations and small IT environments
- All Vertiv Geist power distribution units undergo individual testing for functionality to ensure your network is powered by a reliable rPDU
- UL-listed, so it meets an important requirement for many data centers

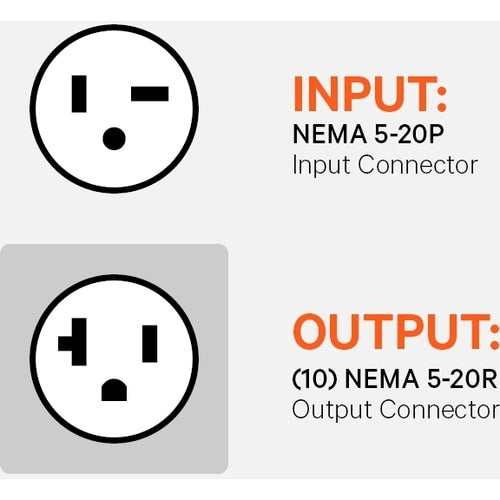

- Ten (10) NEMA 5-20R outlets| NEMA 5-20P plug| 1.9kW|20A| 120V
- Add two years on top of the three-year warranty when you register your rPDU within 120 days since purchase
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | United States |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Current | 20 A |
| Power Rating (Watt) | 1.90 kW |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Basic |
| Receptacle Detail | 10 x NEMA 5-20R |
| Plug/Connector Detail | 1 x NEMA 5-20P |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP9563 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Name | 10-Outlets PDU |
| Product Series | rPDUs |
| Brand Name | Vertiv Geist |
| Physical Characteristics | |
| Weight (Approximate) | 6 lb (2721.55 g) |
| Length | 3.75" (95.25 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.72" (43.69 mm) |
| Width | 17" (431.80 mm) |
| Depth | 3.75" (95.25 mm) |
| Mounting Orientation | Horizontal |
