Acerca del producto

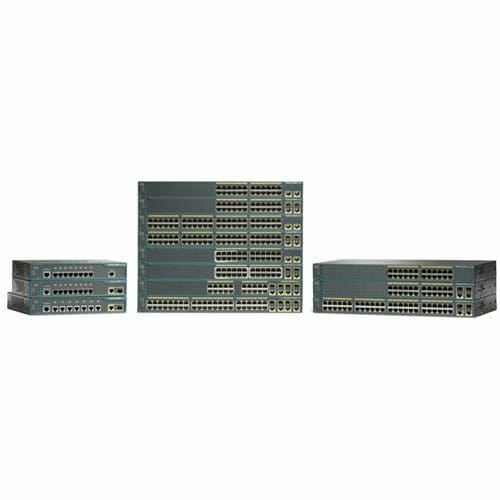

Cisco Catalyst 2960-24TC-S Switch with LAN Lite software is fixed-configuration, standalone switch that provide desktop Fast Ethernet connectivity for entry-level wiring closet and small branch office networks. The Cisco Catalyst 2960-24TC-S LAN Lite Switch simplifies the migration from non-intelligent hubs and unmanaged switches to a fully scalable managed network. The LAN Lite Cisco IOS Software provides entry-level security, quality of service (QoS), and availability capabilities while lowering the network total cost of ownership.
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Rack mounting enables you to organize wires & secure cables for professional installation
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Cascade to other network devices through the uplink port to expand your local area network
- Features 24 networking ports to establish large network
Especificaciones técnicas
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Management |
|
| Manageable | Yes |
| Miscellaneous | |
| Additional Information |
|
| Environmentally Friendly | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Shared SFP Slot | Yes |
| Memory | |
| Flash Memory | 32 MB |
| Standard Memory | 64 MB |
| Memory Technology | DRAM |
| Media & Performance | |
| Network Technology | 10Base-T |
| 10/100/1000Base-T | |
| Twisted Pair Cable Standard | Category 5 |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Weight (Approximate) | 3.63 kg |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 9.30" (236.22 mm) |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 24 |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 2 x Fast Ethernet Expansion Slot |
| 2 x Gigabit Ethernet Uplink | |
| 24 x Fast Ethernet Network | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | WS-C2960-24TC-S-RF |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 2960-24TC-S |
| Product Name | Catalyst 2960-24TC-S Ethernet Switch |
| Product Line | Catalyst |
| Product Series | 2960 |
| Brand Name | Cisco |
