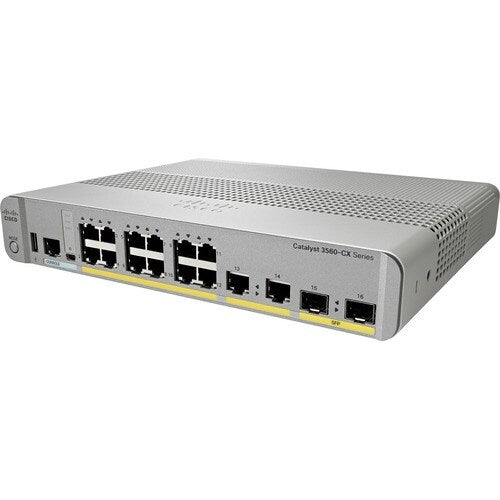

The Cisco Catalyst 3560-CX and 2960-CX Series Compact Switches help optimize network deployments. These Gigabit Ethernet (GbE) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE) connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.
With their quiet, fan-less design and compact footprint, these switches offer flexible mounting options and open up a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations. The setup allows for shorter cable runs from the compact switches, allowing for flexibility in space redesign and growth as new devices join the network - this eliminating the need for expensive and inflexible cabling infrastructure.
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 10 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 10 ports
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Power Description | |
| Power Source | Power Supply |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 2.0 |
| Media & Performance | |
| Network Technology | 1000Base-X |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | No |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Uplink |
| 8 x Gigabit Ethernet Network | |
| 2 x Gigabit Ethernet Expansion Slot | |
| Physical Characteristics | |
| Weight (Approximate) | 3.80 lb (1723.651006 g) |
| Form Factor | Desktop |
| Rail-mountable | |
| Rack-mountable | |
| Height | 1.75" (44.45 mm) |
| Width | 10.60" (269.24 mm) |
| Depth | 8.40" (213.36 mm) |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | WS-C2960CX-8TCL-RF |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 2960CX-8TC-L |
| Product Name | Catalyst 2960CX-8TC-L Switch |
| Product Line | Catalyst |
| Product Series | 2960-CX |
| Brand Name | Cisco |
| Product Condition | Refurbished |
