Acerca del producto

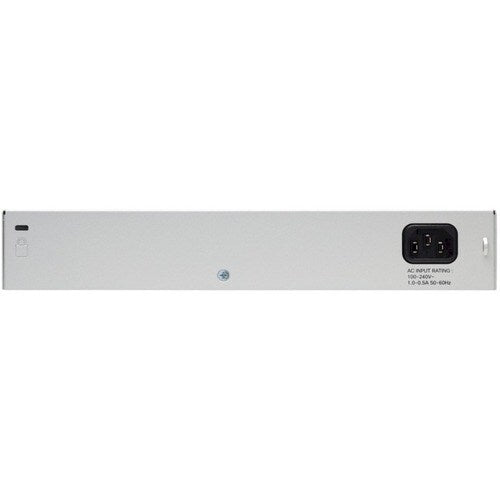

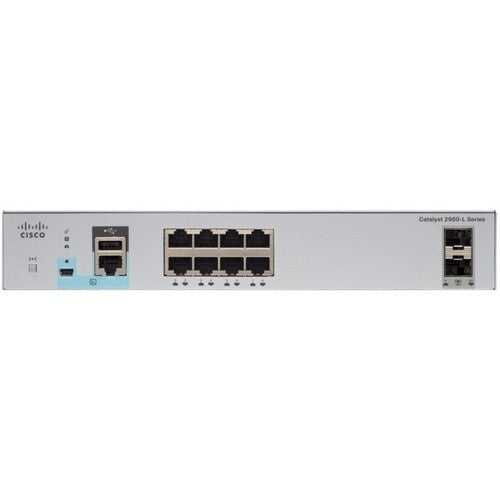

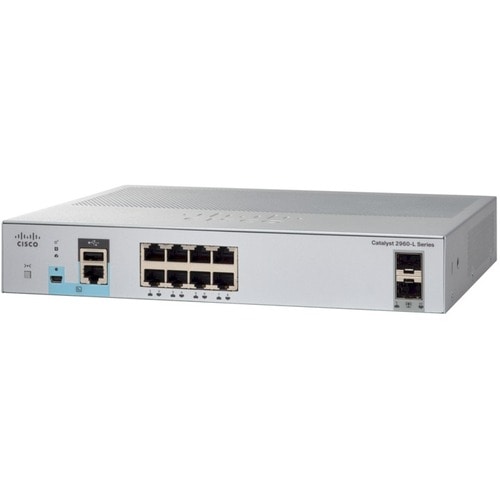

Cisco Catalyst® 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure, and energy-efficient business operations with a range of Cisco IOS® Software features.
- 8, 16, 24, or 48 Gigabit Ethernet ports with line-rate forwarding
- 2 or 4 Gigabit Small Form-Factor Pluggable (SFP) uplinks
- Power over Ethernet Plus (PoE+) support with up to 370W of power budget
- Fanless operation and operational temperature up to 55°C for deployment outside the wiring closet
- Higher mean time between failure (MTBF) because they have no moving mechanical parts
- Less than 11.5-inch depth fit in use cases with space limitation
- Reduced power consumption and advanced energy management features
- RJ45 and USB console access for simplified operations
- Intuitive web UI for easy deployment and management
- Cisco IOS® Software features
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 4 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Total Number of Expansion Slots | 2 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| 2 x Gigabit Ethernet Uplink | |
| Media & Performance | |
| Network Technology | 1000Base-X |
| 10/100/1000Base-TX | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Physical Characteristics | |
| Weight (Approximate) | 4.45 lb (2018.49 g) |
| Form Factor | Rail-mountable |
| Magnetic Mount | |
| Height | 1.73" (43.94 mm) |
| Width | 10.56" (268.22 mm) |
| Depth | 8.45" (214.63 mm) |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | WS-C2960L-8TSLL-RF |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | WS-C2960L-8TS-LL |
| Product Name | Catalyst WS-C2960L-8TS-LL Ethernet Switch |
| Product Line | Catalyst |
| Product Series | 2960-L |
| Brand Name | Cisco |
| Product Condition | Refurbished |
