Acerca del producto

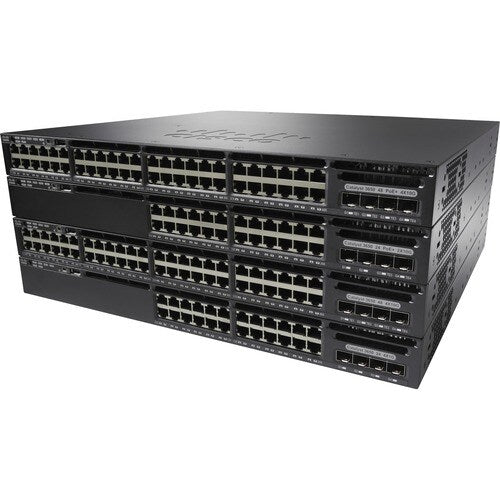

The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 24 networking ports
Especificaciones técnicas
| Network & Communication | |
| Layer Supported | 3 |
| Reliability | |
| MTBF | 661800 Hour |
| Management & Protocols | |
| Management |
|
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Memory | |
| Flash Memory | 2 GB |
| Standard Memory | 4 GB |
| Memory Technology | DRAM |
| Miscellaneous | |
| Certifications & Standards | Safety:
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Power Description | |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 15.15 lb (6871.924406 g) |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 17.63" (447.68 mm) |
| Compatible Rack Unit | 1U |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 10/100/1000Base-T | |
| Twisted Pair Cable Standard | Category 5e |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Interfaces/Ports | |
| Token Ring Port | No |
| LRE Port | No |
| Number of Network (RJ-45) Ports | 24 |
| Management Port | Yes |
| Bypass | No |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
| 24 x Gigabit Ethernet Network | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | WS-C3650-24TD-S-RF |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | WS-C3650-24TD |
| Product Name | Catalyst WS-C3650-24TD Ethernet Switch |
| Product Line | Catalyst |
| Product Series | 3650 |
| Brand Name | Cisco |
| Product Condition | Refurbished |
