Acerca del producto

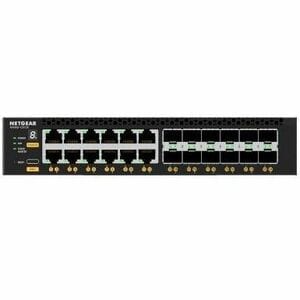

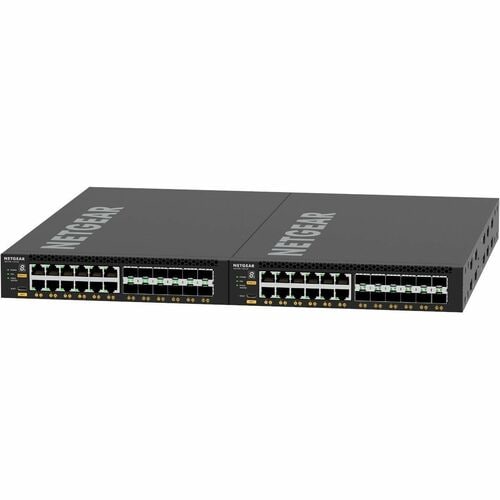

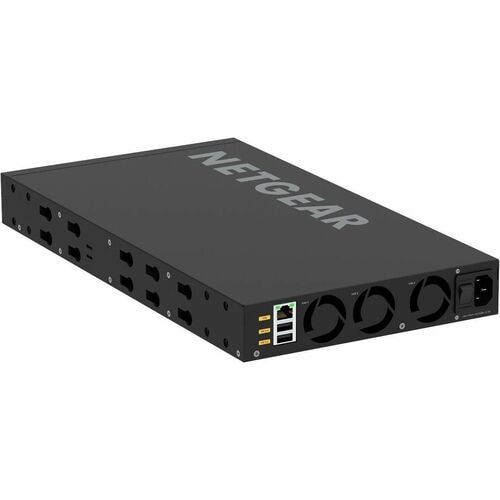

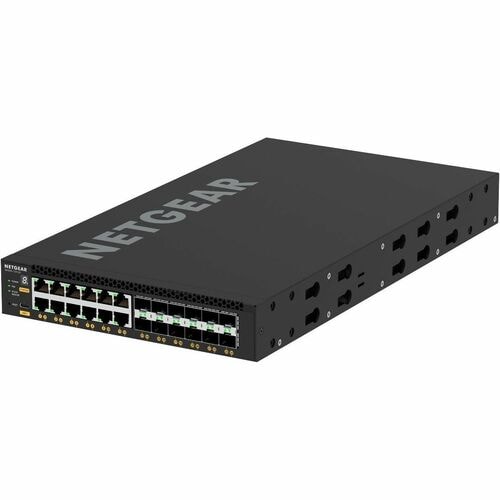

Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.
NETGEAR listens to and supports the Pro AV community
- IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network
- Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
- The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations
- NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
- AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
- SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI
Enterprise-class hardware
- From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
- Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)
Other IT use cases
- Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
- Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack
Industry standard management
- Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
- SNMP, sFlow and RSPAN - the entire feature set is available without license
Industry leading warranty
- NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 12 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 12 ports
- Cascade to other network devices through the uplink port to expand your local area network
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 12 |
| Total Number of Expansion Slots | 12.0 |
| Media & Performance | |
| Network Technology | 10GBase-T |
| 10GBase-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 12 |
| Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet Network |
| 12 x 10 Gigabit Ethernet Expansion Slots | |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 240 W |
| Plug/Connector Type | C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 9.48 lb (4300 g) |
| Form Factor | Table Top |
| Rack-mountable | |
| Height | 17.01" (432 mm) |
| Width | 13.12 ft (4000 mm) |
| Depth | 8.66" (220 mm) |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | XSM4324100NES |
| Manufacturer Website Address | http://www.netgear.com |
| Manufacturer | Netgear, Inc |
| Product Model | M4350-12X12F |
| Product Name | AV Line M4350-12X12F Ethernet Switch |
| Product Line | AV Line |
| Product Series | M4350 |
| Brand Name | Netgear |
| Miscellaneous | |
| Application/Usage | Business |
| Enterprise | |
| Network | |
| VoIP Phone | |
| IP Phone | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Energy-using Products Directive (EuP) | |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1w |
| IEEE 802.1as | |
| IEEE 802.1ak | |
| IEEE 802.3bt | |
| IEEE 802.3az | |
| IEEE 802.3at | |
| IEEE 802.3af | |
| IEEE 802.3ad | |
| IEEE 802.1s | |
| IEEE 802.1Qav | |
| IEEE 802.1Qat | |
| IEEE 802.1Q | |
| IEEE 802.1p | |
| IEEE 802.1BA | |
| IEEE 802.1AX |
