Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.
NETGEAR listens to and supports the Pro AV community
- IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network
- Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
- The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations
- NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
- AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
- SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI
Enterprise-class hardware
- From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
- Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)
Other IT use cases
- Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
- Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack
Industry standard management
- Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
- SNMP, sFlow and RSPAN - the entire feature set is available without license
Industry leading warranty
- NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
- Can work as layer 3 routing for scalable network design
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP28 |
| SFP+ | |
| Number of SFP+ Slots | 32 |
| Total Number of Expansion Slots | 40.0 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 32 x 10 Gigabit Ethernet Expansion Slots |
| 8 x 25 Gigabit Ethernet Expansion Slots | |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 25GBase-X | |
| Ethernet Technology | 25 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Miscellaneous | |
| Application/Usage | Network |
| VoIP Phone | |
| IP Phone | |
| Enterprise | |
| Business | |
| Power Description | |
| Power Consumption | 420 W |
| Plug/Connector Type | C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 6.95 kg |
| Form Factor | Rack-mountable |
| Table Top | |
| Height | 17.01" (432 mm) |
| Width | 14.44 ft (4400 mm) |
| Depth | 15.75" (400 mm) |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | XSM4340FV100NES |
| Manufacturer Website Address | http://www.netgear.com |
| Manufacturer | Netgear, Inc |
| Product Model | M4350-32F8V |

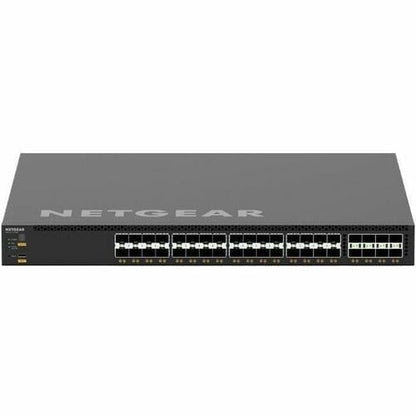

| Product Name | AV Line M4350-32F8V Ethernet Switch |
| Product Line | AV Line |
| Product Series | M4350 |
| Brand Name | Netgear |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1Q |
| IEEE 802.1Qat | |
| IEEE 802.1Qav | |
| IEEE 802.1s | |
| IEEE 802.1w | |
| IEEE 802.3ad | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.3az | |
| IEEE 802.3bt | |
| IEEE 802.1AX | |
| IEEE 802.1BA | |
| IEEE 802.1p | |
| IEEE 802.1ak | |
| IEEE 802.1as |
