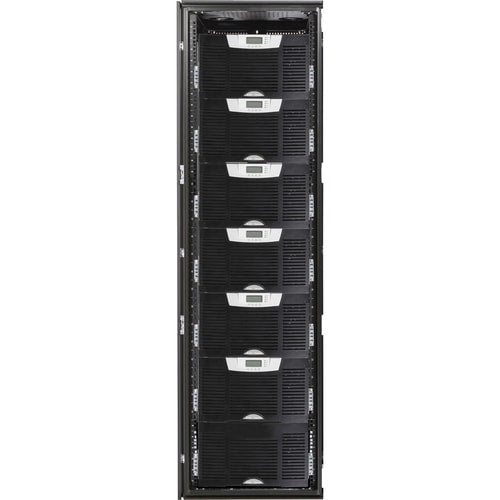

Acerca del producto
El Eaton BladeUPS es una solución revolucionaria para la calidad de la energía, escalable y modular. BladeUPS amplía la protección energética de 12 a 60 kW en un solo rack de 19 pulgadas, a la vez que reduce los costos de energía y refrigeración.
Especificaciones técnicas
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hard Wire 4-wire |
| Interfaces/Ports | |
| Modular Slots | 2 x X-Slot |
| 4 x Communications Slot | |
| Serial Port | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 14 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Characteristics | Maintenance-free/Sealed |
| Management | |
| Bypass Switch | Automatic |
| Maintenance | |
| Emergency Power OFF | Yes |
| Network Management | SNMP Manageable |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Eaton Intelligent Power Software Suite |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 1638.03 lb (743000 g) |
| Form Factor | Tower |
| Height | 81" (2057.40 mm) |
| Width | 24" (609.60 mm) |
| Depth | 42" (1066.80 mm) |
| Power Description | |
| Input Voltage | 220 V AC |
| Output Voltage | 228 V AC |
| 120 V AC | |
| 208 V AC | |
| Output Frequency | 50 Hz |
| Load Capacity (VA) | 48 kVA |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | ZP22410000XX000 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | BladeUPS Power System |
| Product Line | BladeUPS |
| Brand Name | Eaton |
